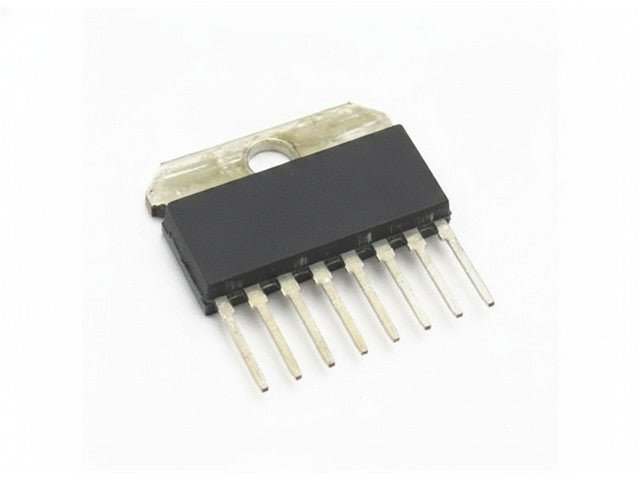

UPC1242H

Name: UPC1242H - Communica [Part No: UPC1242H]
Brand: Communica
SKU: UPC1242H
Price: 13.25 ZAR
Availability: InStock

SKU: UPC1242H

BRAND: Communica

R 15.24_{(inc VAT)}
R 13.25_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Semiconductors

Type: Amplifier ICs

Category: Audio Power Amplifier ICs

Integrated Circuit Audio Linear Power Amplifier

Specifications

Device Type: Monolithic AF Power Amplifier
Package Type: SIP-8H (Single In-Line Power Package)
Application: Television audio, radios, compact stereos, active speakers

Electrical Characteristics

Supply Voltage Range (VCC):
- 9 V to 18 V
Recommended Supply Voltage:
- 13.2 V typical
Quiescent Current:
- Approximately 40 mA typical

Audio Performance

Output Power:
- 7 W typical @ 13.2 V, 4 Ω load
- Up to 9 W maximum under optimum conditions
Load Impedance:
- 4 Ω to 8 Ω
Frequency Response:
- 20 Hz to 20 kHz
Total Harmonic Distortion (THD):
- Typically below 0.5%

Protection Features

Built-in thermal shutdown
Output short-circuit protection
Safe Operating Area (SOA) protection
Overload protection

Package Information

Package Type: SIP-8H
Pin Count: 8 Pins
Mounting Style: Through-Hole
Heat Sink: Required for full-power operation

Additional Information

Device

IC

Elevate your audio experience with the UPC1242H Integrated Circuit Audio Linear Power Amplifier. Delivering up to 9W of power, this compact SIP-8H amplifier ensures crystal-clear sound for televisions, radios, and active speakers. With built-in protection features and a frequency response of 20 Hz to 20 kHz, enjoy reliable performance and superior audio quality in every setting. Upgrade your sound system effortlessly!
