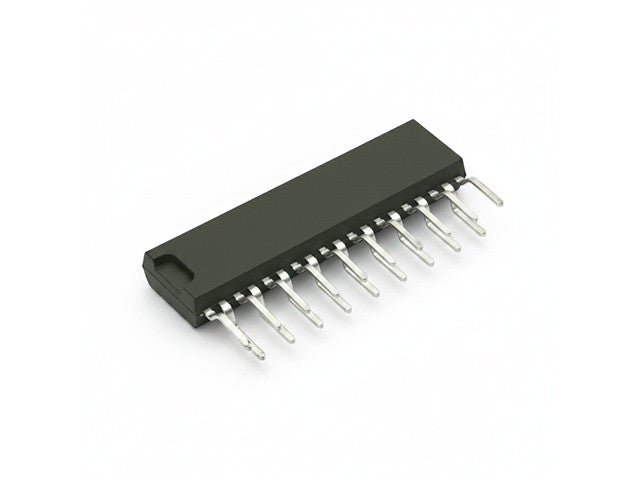

UPC1245V

• Device Type: Monolithic AF Power Amplifier
• Package Type: ZIP-12 / SIP Power Package
• Application: Television audio, car radios, compact stereos, active speakers

Electrical Characteristics

• Supply Voltage Range (VCC):
  • 8 V to 18 V
• Recommended Supply Voltage:
  • 13.2 V typical
• Quiescent Current:
  • Approximately 50 mA typical

Audio Performance

• Output Power:
  • 10 W typical @ 13.2 V, 4 Ω load
  • Up to 12 W maximum depending on distortion and heatsinking
• Load Impedance:
  • 4 Ω to 8 Ω
• Frequency Response:
  • 20 Hz to 20 kHz
• Total Harmonic Distortion (THD):
  • Typically less than 0.5%
• Voltage Gain:
  • Approximately 40 dB

Protection Features

• Thermal shutdown protection
• Output short-circuit protection
• Safe Operating Area (SOA) protection
• Overload protection

Package Information

• Package Type: ZIP-12 / SIP Power Package
• Pin Count: 12 Pins
• Mounting Style: Through-Hole
• Heat Sink: Required for maximum output power

Operating Temperature

• Operating Temperature Range:
  • -20°C to +75°C
• Storage Temperature Range:
  • -40°C to +125°C

Typical Applications

• Television audio output stages
• Car audio systems
• Portable PA systems
• Active speakers
• Radio receivers
• Cassette players
• Compact stereo systems
• Industrial audio equipment
