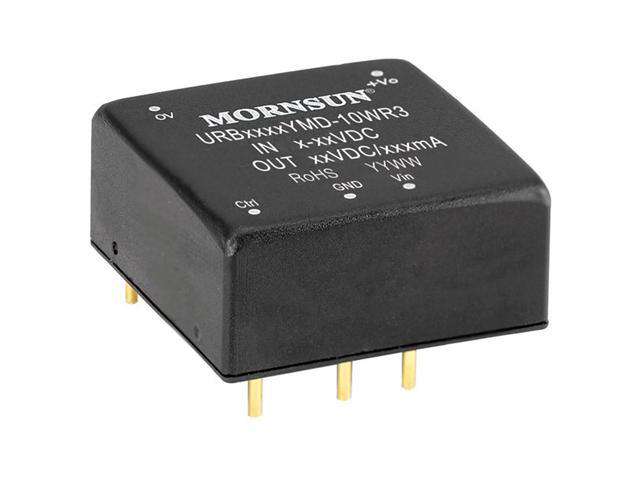

URB2405YMD-10WR3

SKU: URB2405YMD-10WR3

BRAND: Mornsun


10W Single Output DC/DC Converter with 24VDC Input Voltage and 5V Output

Overview

Features

  • Wide range of input voltage (4:1)
  • Efficiency up to 88%
  • No-load power consumption as low as 0.2W
  • Isolation voltage : 1.5K VDC
  • Operating temperature range : -40°C to 85°C
  • Input under-voltage protection, output over-voltage protection, short circuit protection, output over-current protection
  • Meet CISPR22/EN55022 CLASS A
  • International standard pin-out
  • A2S (wring mounting) and A4S (TS35 rail mounting) products featuring anti-reverse connection for input

Specification

Input Specifications

  • Input Current (full load / no-load) : 502mA/5mA
  • Reflected Ripple Current : 40mA
  • Input impulse Voltage (1sec. max.) : -0.7mA
  • Starting Voltage : 100VDC max
  • Input under-voltage Protection : 6.5VDC
  • Input Filter : Pi filter
  • Starting Time : 10ms
  • Ctrl
    • Module switch on : 3.5-12VDC
    • Module switch off : 0-1.2VDC
    • Input current when switched off : 6mA

Output Specifications

  • Output Voltage Accuracy : ±1%
  • Balance of Output Voltage : ±0.5%
  • Line Regulation : ±0.2%
  • Load Regulation : ±0.5%
  • Cross Regulation : ±5%
  • Transient Recovery Time : 300µs
  • Transient Response Deviation : ±3%
  • Temperature Drift Coefficient : ±0.03 %/7°C
  • Ripple & Noise : 40mV p-p
  • Trim : ±10%VDC
  • Output Over-voltage Protection : 160%Vo
  • Over-current Protection : 160%
  • Short circuit Protection : Continuous, Self-recovery

General Specifications

  • Isolation Voltage : 1500VDC
  • Isolation Resistance : 1000MΩ
  • Isolation Capacitance : 1000pF
  • Switching Frequency : 400 kHz
  • Operating Temperature : 40°C to 85°C
  • Storage Temperature : -55°C to 125°C
  • Storage Humidity : 5~95 %RH
  • Max. Casing Temperature : 105°C
  • Lead Temperature : 300°C
  • Vibration : 10-55Hz, 10G, 30 Min. along X, Y and Z
  • MTBF : 1000K Hours
  • Weight : 28g
  • Cooling : Free Air Conversion
  • Case Material : Aluminium Alloy

-->
