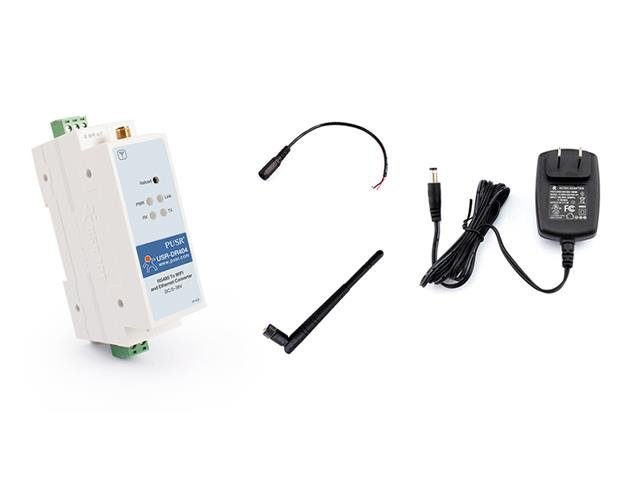

USR DR404 DIN RAIL RS485-WIFI - INDUSTRIAL IoT Wi-fi SOLUTIONS -

USR DR404 DIN RAIL RS485-WIFI

Name: USR DR404 DIN RAIL RS485-WIFI - Communica [Part No: USR DR404 DIN RAIL RS485-WIFI]
Brand: UsrIoT
SKU: USR DR404 DIN RAIL RS485-WIFI
Price: 880 ZAR
Availability: InStock

SKU: USR DR404 DIN RAIL RS485-WIFI

BRAND: UsrIoT

R 1,012.00_{(inc VAT)}
R 880.00_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Computing & Peripherals

Type: Industrial IoT Wi-fi Solutions

Category: CAN to Ethernet Converter

Industrial CAN to Ethernet Converter. Data Communication Between CAN and Network Server. Two CAN Ports and One Ethernet Port, TCP/IP Protocol, Extend the CAN Network. Transfers Among Three Networks: CAN to Ethernet, CAN to RS485, Ethernet to RS485

Industrial CAN to Ethernet Converter

Specifications

Ethernet
Port Number	1 Ethernet Ports: 1 x WAN/LAN
Buffer	RX/TX: Max 4K bytes
Protection	2KV Electromagnetic isolation for Ethernet port
Speed Rate	10/100Mbps, MDI/MDIX
Wi-Fi
Certificate	FCC/CE
WiFi	802.11 b/g/n
FrequencyRange	2.412GHz-2.484GHz
TransmitPower	802.11b: +19dBm(Max.@11Mbps) 802.11g: +18dBm(Max.@54Mbps) 802.11n: +17dBm(Max.@HT20,MCS7) +17dBm(Max.@HT40,MCS7)
TransmitPower	User can configure power
ReceiveSensitivity	802.11b: -89dBm(@11Mbps) 802.11g: -81dBm(@54Mbps) 802.11n: -73dBm(@HT20,MCS7) -71dBm(@HT40,MCS7)
Hardware
InterfaceStandard	RS485:300～230.4Kbps
InterfaceStandard	485 interface (anti surge, anti thunder, overcurrent protection)
Input Voltage	DC5～36V
Operating Temp	-40℃～85℃
StorageTemp	-40℃～125℃

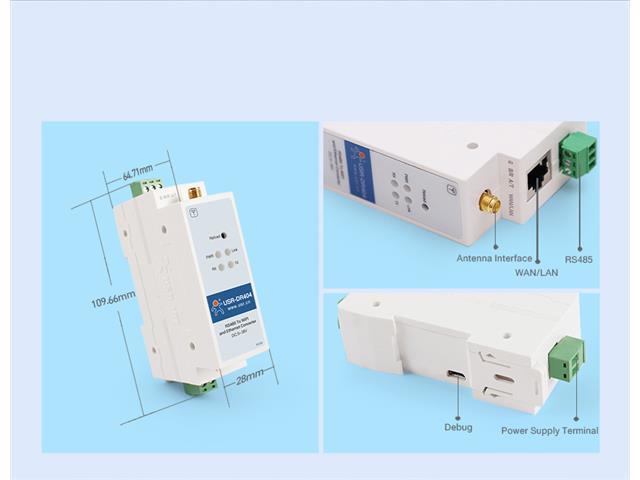

Size	109.662864.71mm(LWH)
Software
Network Mode	Station/AP/AP+Station
Security	WPA-PSK/WPA2-PSK
Encryption	TKIP/AES
Work Mode	Transparent transmission/Serial command/ https Client/Modbus TCP<=>Modbus RTU
SettingCommand	AT+ command
Networking Protocol	TCP/UDP/ARP/ICMP/DHCP/DNS/https
Max Client Numberin TCP Server Mode	24
Configuration	Web server＋AT command
Customer application software	Support customize application software

Downloads

Additional Information

Device	Converter
Type	Industrial \| CAN to Ethernet

Enhance your industrial communication with the USR DR404 DIN RAIL RS485-WIFI converter. Effortlessly connect CAN networks to Ethernet and RS485, ensuring reliable data transfer at speeds up to 100Mbps. With robust protection features and versatile networking modes, this converter is perfect for seamless integration in any environment. Upgrade your connectivity today!
