UT621024PC-70L

Name: UT621024PC-70L - Communica [Part No: UT621024PC-70L]
Brand: Communica
SKU: UT621024PC-70L
Price: 37 ZAR
Availability: InStock

SKU: UT621024PC-70L

BRAND: Communica

R 42.55_{(inc VAT)}
R 37.00_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Semiconductors

Type: Memory ICs

Category: IC - SRAM (Static RAM)

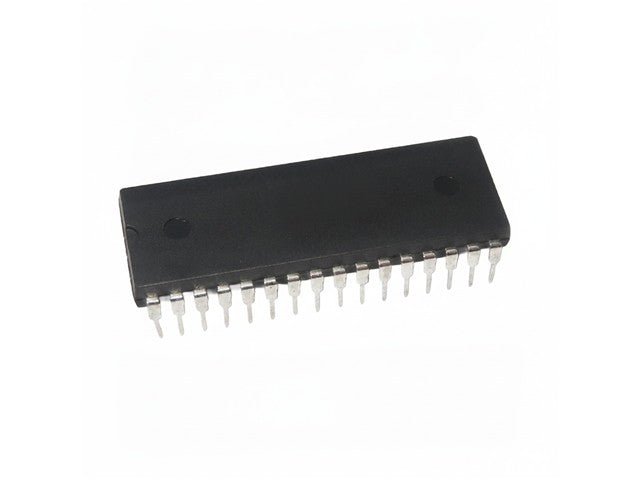

Static RAM 128KX8 70NS 32Pin DIP 13/T

Specifications

Device Type: Low-Power CMOS Static RAM (SRAM)
Memory Organization: 128K × 8 bits (131,072 × 8)
Total Memory Capacity: 1 Mbit (1,048,576 bits)
Access Time: 70 ns (maximum)
Supply Voltage: Single +5 V (±10%)
Package: 32-pin PDIP (PC suffix)
Mounting Style: Through-Hole
Technology: CMOS Static RAM
Operating Temperature Range: 0°C to +70°C
Data Retention Voltage: 2.0 V (minimum)
Operating Current (Typical):
- 40 mA @ 70 ns version
- 50 mA @ 55 ns version
- 60 mA @ 35 ns version
Standby Current:
- 2 µA typical (L version)
- 1 µA typical (LL version)
Input/Output Compatibility: TTL Compatible
Output Configuration: Three-State Outputs
Operation: Fully Static (No Refresh Required)

Control Signals

CE1, CE2: Chip Enable Inputs
WE: Write Enable
OE: Output Enable

Applications

Battery-backed memory systems
Industrial controllers
Embedded systems
Data buffering
Communication equipment
Instrumentation and measurement systems

Additional Information

Device

IC

Enhance your electronic projects with the UT621024PC-70L, a low-power 128Kx8 CMOS Static RAM. Offering a fast access time of 70ns and a compact 32-pin DIP design, this reliable memory solution is perfect for industrial controllers, embedded systems, and communication equipment. Experience efficient data retention and minimal standby current for optimal performance in battery-backed applications. Upgrade your designs with this versatile SRAM today!
