V15FL111C2

SKU: V15FL111C2

BRAND: Communica

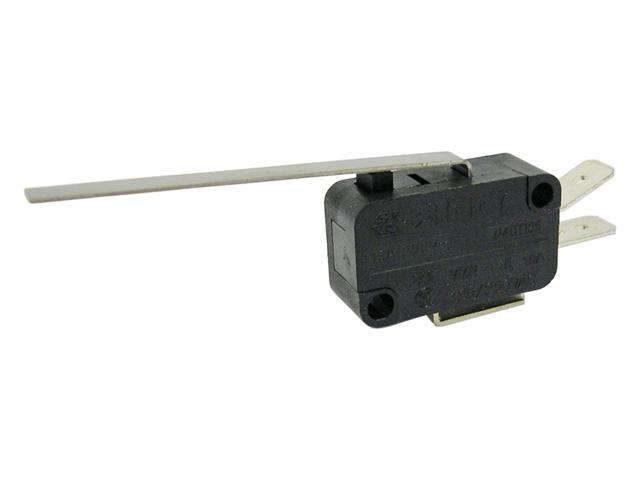

Miniature Micro Switch • Form : 1C-SPDT(CO) • 15A-250VAC • Quick-Connecting • Long-Lever Actuator

Overview

Features

  • Contact Resistance (initial) : Max. 100mΩ
  • Insulation Resistance (at 500VDC/minute) : Min 100MΩ
  • Dielectric Strength : AC 1000VAC (50~60Hz)
  • Storage Temperature Range : -25°C to 85°C
  • Storage Humidity : @ 40°C, Max. 85% R.H
  • Vibration : 10~55Hz, displacement 0.75mm (p-p)
  • Electrical Service Life : 0.1A - Min.1,000,000 operations
  • Other ratings - Min 10,000 operations
  • Electrical Operating Frequency : 0.1A - 120 operations per minute
  • Other ratings - 10-30 operations per minute
  • Mechanical Service Life : Min 10,000,000 operations
  • Mechanical Operating Frequency : 120 operations per minute

    Specification

    Transition Style Momentary
    Actuator Style Long-Lever
    Termination Quick-Connecting
    Switch Circuit 1C-SPDT(CO)
    Electrical Rating 15A-250VAC
    No.of Poles/Pins 3Pin
