V23042-A2003-B101

Name: V23042-A2003-B101 - Communica [Part No: V23042-A2003-B101]
Brand: Siemens
SKU: V23042-A2003-B101
Price: 25.45 ZAR
Availability: OutOfStock

SKU: V23042-A2003-B101

BRAND: Siemens

Sold Out
R 29.27_{(inc VAT)}
R 25.45_{(ex VAT)}

Collections: Electromechanical

Type: Relays

Category: Low Signal PCB Relays

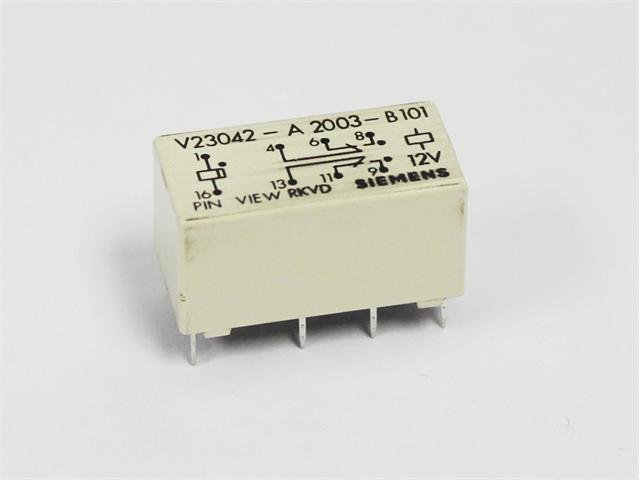

2 Pole Telecom PCB Relay • Form 2C (DPDT) • V_Coil= 12V DC • I_{Max Switching}= 5A • R_Coil= 600Ω • PCB • Non Latching

Telecom PCB Relay

Features

5A switching capacity.
Meets FCC Part 68 isolation.
Temperature compensated over operating range.
No magnetic interference between adjacent relays.

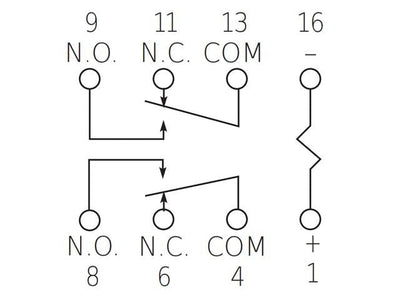

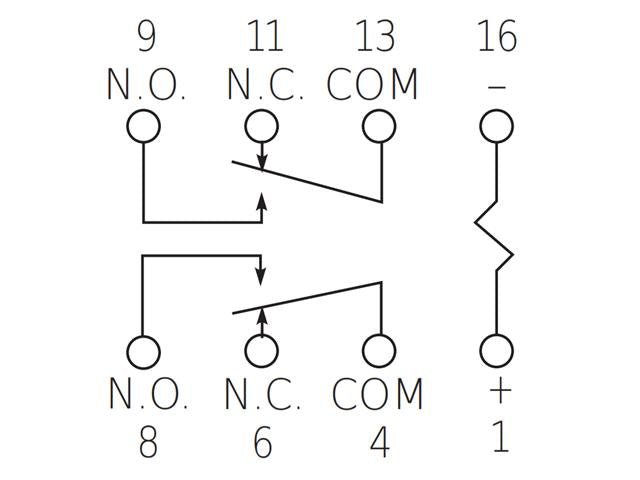

2 Form C contact arrangement.

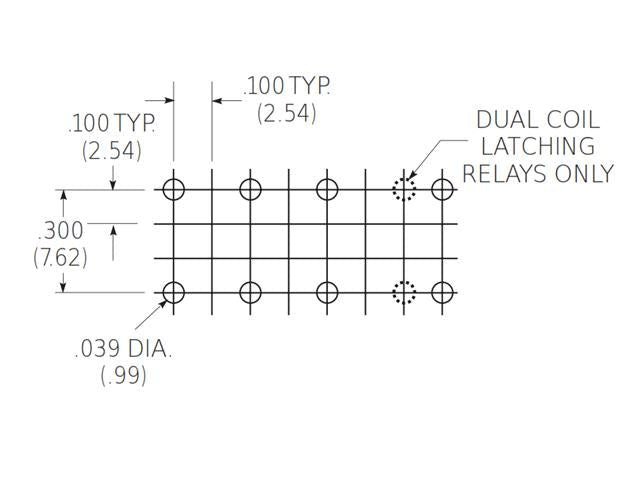

Standard 0.1” x 0.3” grid spacing in a DIP configuration.
Standard or sensitive DC coils through 48 volts.
Well suited for audio communications circuits, logic and process control, vending machines and office automation applications.
Immersion cleanable, plastic sealed case.

Downloads

Datasheet - V23042 Series

Additional Information

Device	Relay
Type	Telecom \| PCB \| Non Latching
Highlights	Non Latching
Contact Form	Form 2C (DPDT)
Termination	PCB
Coil Rated Voltage	12V
AC/DC Voltage	DC
Max. Switching Current	5A
Coil Power	240mW Power
Coil Resistance	600Ω
Contact Material	Silver, Gold plated
Pin Layout	DPST
No. of Poles	2 Pole(s)

Upgrade your telecom projects with the V23042-A2003-B101 2 Pole PCB Relay. With a robust 5A switching capacity and a compact DIP design, this reliable relay ensures optimal performance in audio communication, automation, and control applications. Its non-latching feature and superior isolation meet FCC standards, making it a must-have for efficient and interference-free operation.
