V68ZA2

Name: V68ZA2 - Communica [Part No: V68ZA2]
Brand: Littelfuse
SKU: V68ZA2
Price: 1.20 ZAR
Availability: InStock

SKU: V68ZA2

BRAND: Littelfuse

R 1.38_{(inc VAT)}
R 1.20_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Passive Components

Type: Surge Protection Components

Category: Varistors - Metal Oxide ZOV(MOV)

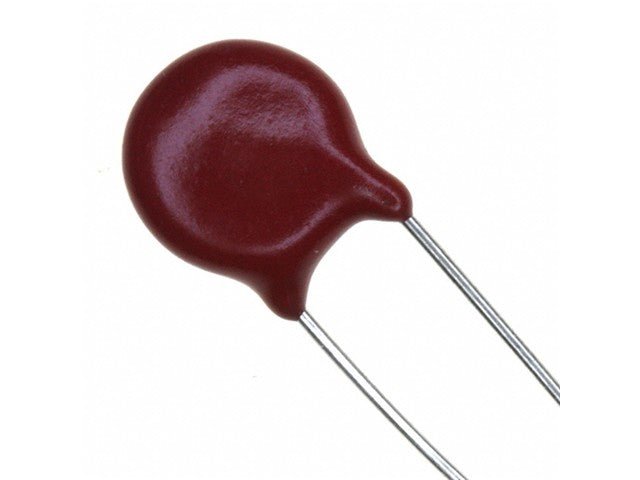

MOV 40V 10MM Disc Radial

Specifications

- Device Type: Transient Voltage Surge Suppressor (MOV)
- Series: ZA Series
- Package Style: Radial Lead Disc Varistor
Electrical Characteristics
- Maximum Continuous AC Voltage (VM(AC)):
  - 40 VAC
- Maximum Continuous DC Voltage (VM(DC)):
  - 56 VDC
- Varistor Voltage (V₁mA):
  - 68 V
  - Measured at 1 mA DC
- Maximum Clamping Voltage:
  - Approximately 135 V
  - Specified at peak surge current
Surge Capability
- Peak Surge Current (8/20 µs waveform):
  - Up to 1,200 A
- Energy Rating (10/1000 µs waveform):
  - Approximately 10 J
- High transient absorption capability
- Fast response time (<25 ns typical)
Physical Characteristics
- Package Type: Radial Disc
- Lead Style: Through-Hole
- Disc Diameter: Approximately 10 mm
Operating Conditions
- Operating Temperature:
  - -55°C to +85°C
- Storage Temperature:
  - -55°C to +125°C

Downloads

Datasheet

Additional Information

Device

IC

Protect your electronic devices with the V68ZA2 MOV 40V Radial Lead Disc Varistor. Designed for superior transient voltage surge suppression, it handles peak surge currents up to 1,200 A, ensuring your equipment stays safe from electrical spikes. With a fast response time and a wide operating temperature range, this reliable surge protector is essential for any setup. Invest in peace of mind and extend the life of your electronics today!
