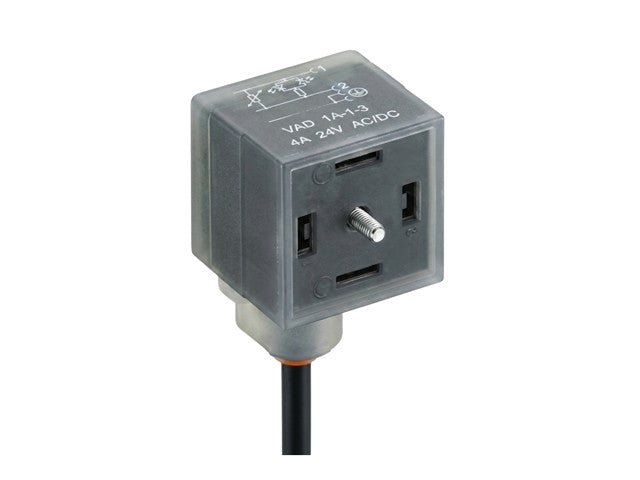

Form A - Singled-Ended Female Angled Cordset, Contacts: 2+2 PE, Varistor (MOV) & Yellow LED, 24 V / 4 A, Cable: Black PUR Jacket; 3x0.50 mm² (20
Form A - Singled-Ended Female Angled Cordset
Feature(s)
- Integrated yellow LED status indication
- Built-in varistor surge suppression
- PUR cable for industrial environments
- Resistant to oils, chemicals, and abrasion
- Flexible cable construction
- Suitable for solenoid valve wiring
- Fast installation and replacement
- High mechanical durability
Specifications
- Manufacturer: Lumberg Automation (Belden)
- Part Number: VAD 1A-1-3-226/2M
- Product Type: DIN valve connector cable assembly
- Connector Type: DIN Form A valve connector
- Cable Length: 2 m
- Number of Poles: 3
- Protection Circuit: Varistor
- Status Indicator: Yellow LED
- Rated Voltage: 24 V AC/DC applications
- Conductor Size: 0.5 mm²
- Number of Conductors: 3
- Cable Jacket Material: PUR (Polyurethane)
- Cable Color: Black
- Cable Diameter: 4.6 ± 0.2 mm
- Conductor Material: Copper
- Contact Material: Cu/Ni, Sn-plated
- Housing Material: TPU / PBT
- Fastening Type: Central screw fixing
- Protection Rating: IP65/IP67 when properly mated
- Operating Temperature (Fixed): -50°C to +105°C
- Operating Temperature (Flexible): -25°C to +105°C
- Flammability Rating: UL 94 V-0 (connector body)
- Oil Resistance: Good chemical and oil resistance
- RoHS Compliant: Yes
Downloads
Additional Information
| Device |
Cordset |
| Type |
Form | A - Singled-Ended | Female | Angled | Cordset |
Upgrade your industrial setup with the VAD 1A-1-3-226/2M Angled Cordset. This durable, 2m cable features built-in surge protection, a yellow LED status indicator, and flexibility for easy installation. Designed for solenoid valve wiring, its oil and chemical resistance ensures reliable performance in tough environments.
