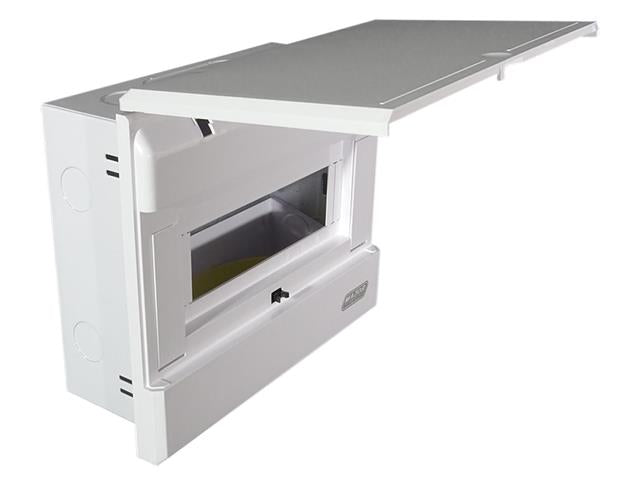

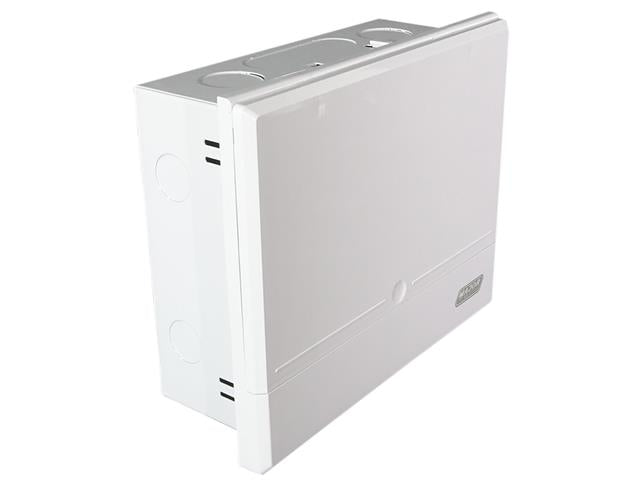

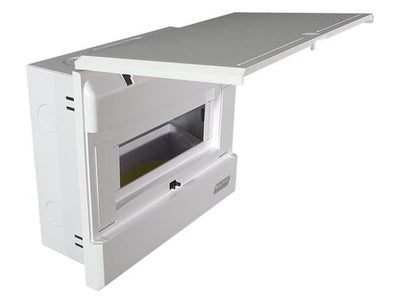

11-14 Way Flush Mount DB Board (Steel Tray)
11-14 Way Flush Mount DB Board
Features
- Available in Surface Mount and Flush Mount
- Overall Dimensions : 323mm x 210mm x 97mm
- Wall Box Size : 292mm x 192mm x 77mm (Flush Mount)
- Heavy duty powder coated iron tray
- Circuit labels included
- Adjustable Din rail & front cover to ensure level installation
- Tested and approved to EN60947-1
- CE Certified
- Din rail connection according to EN50022
- Supplied with earth / neutral bar
- 4 x 20mm knock outs, 2 x 30mm knock outs, 2 x 75mm (L) x 30mm(H) knock outs & 1 x 200mm(L) x 25mm(H) knock out
- Flat elegant design
- MCB’s are C Curve thermal magnetic
- MCB’s are tested and approved to IEC60947-2+ VC8036+ SANS556-1
- RCCB has been tested and approved to VC8035 + SANS 556-2-3 + IEC61008-1
Additional Information
Device |
DB Board |
Type |
11-14 Way | Flush Mount | Steel Tray |
