VELLEMAN EDU09
SKU: VELLEMAN EDU09
BRAND: Velleman
R 1,175.00 (inc VAT) R 1,021.74 (ex VAT)
🚚
Delivery time: 2-5 working days for South Africa
✓
In stock - Ready for immediate dispatch
Free shipping for orders over ZAR 1,000.00

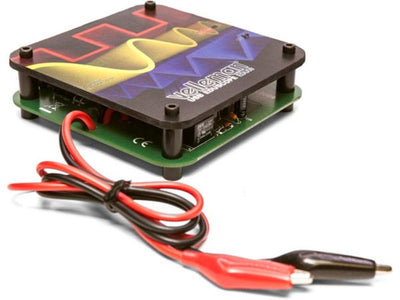

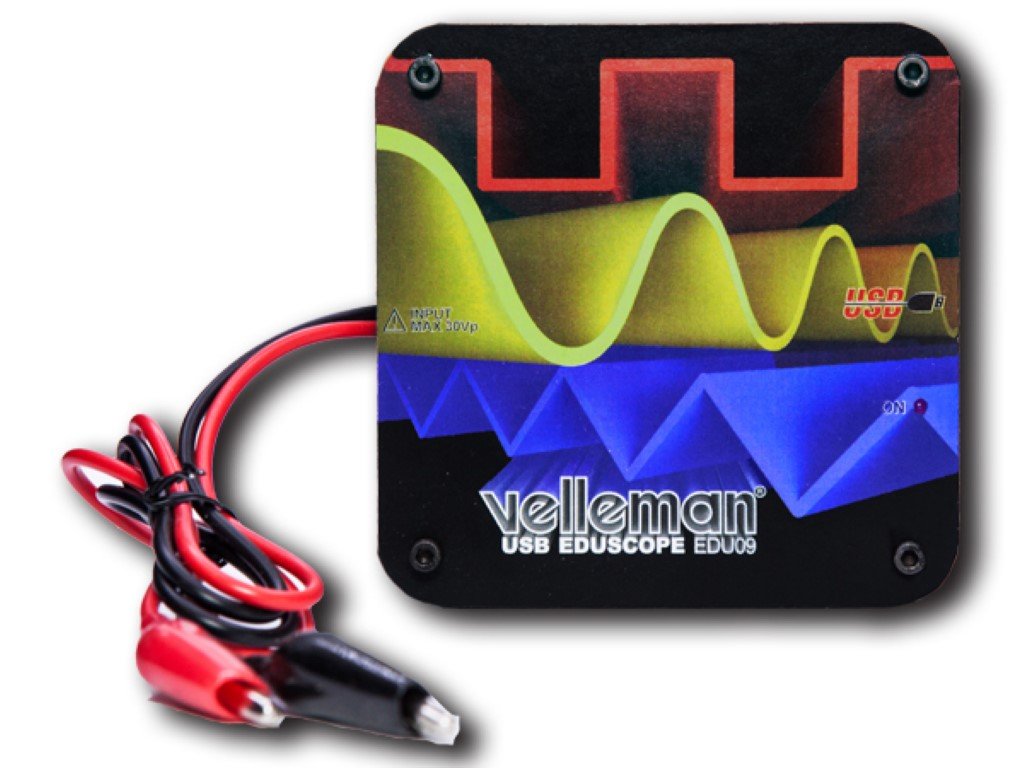

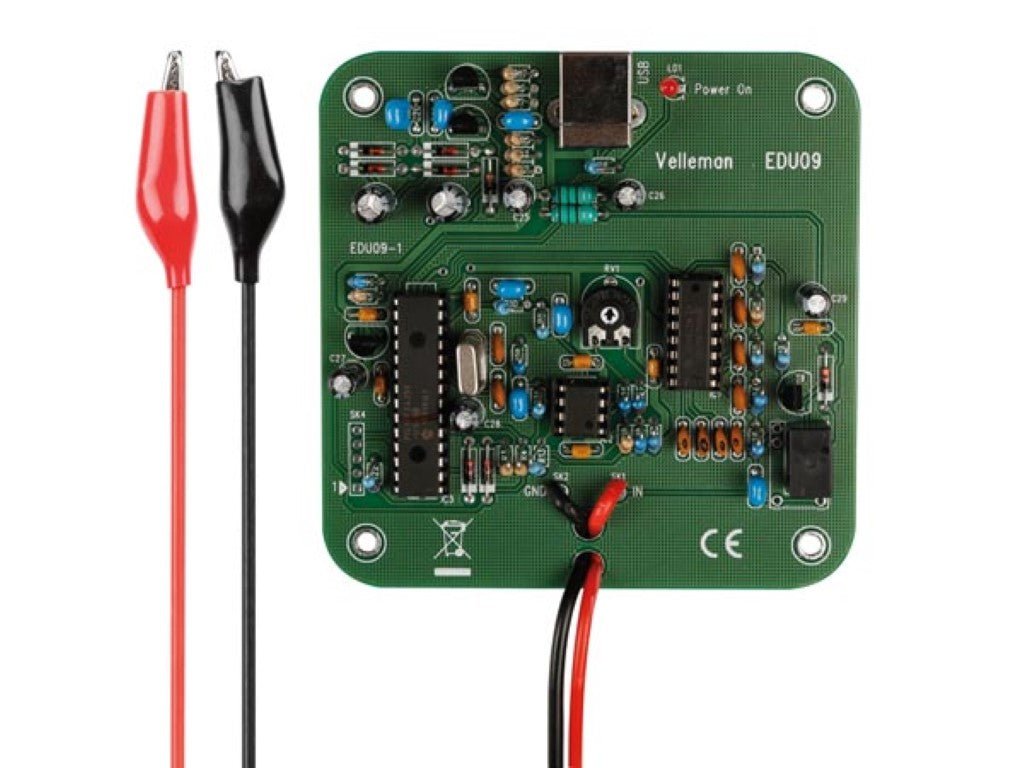

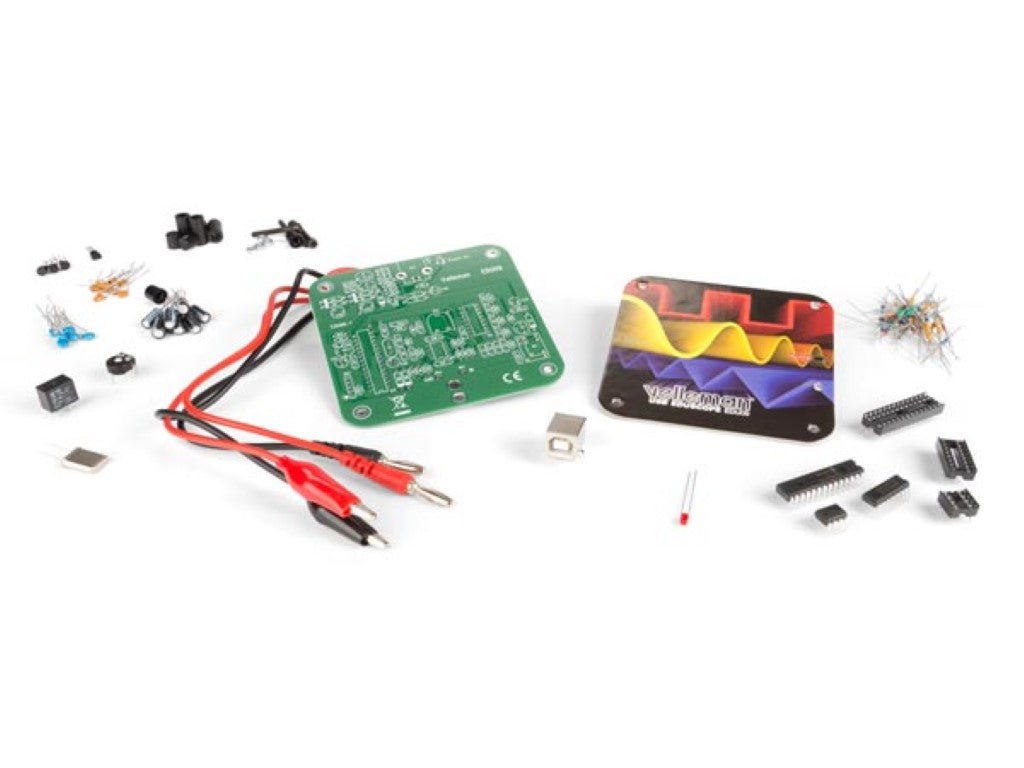

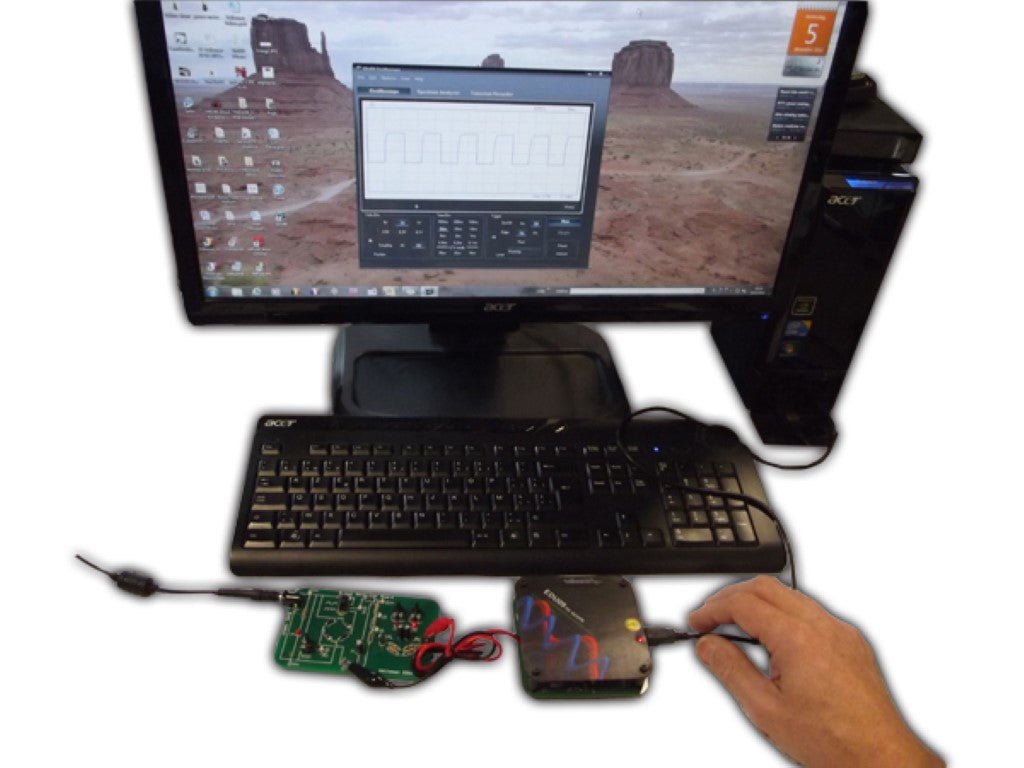

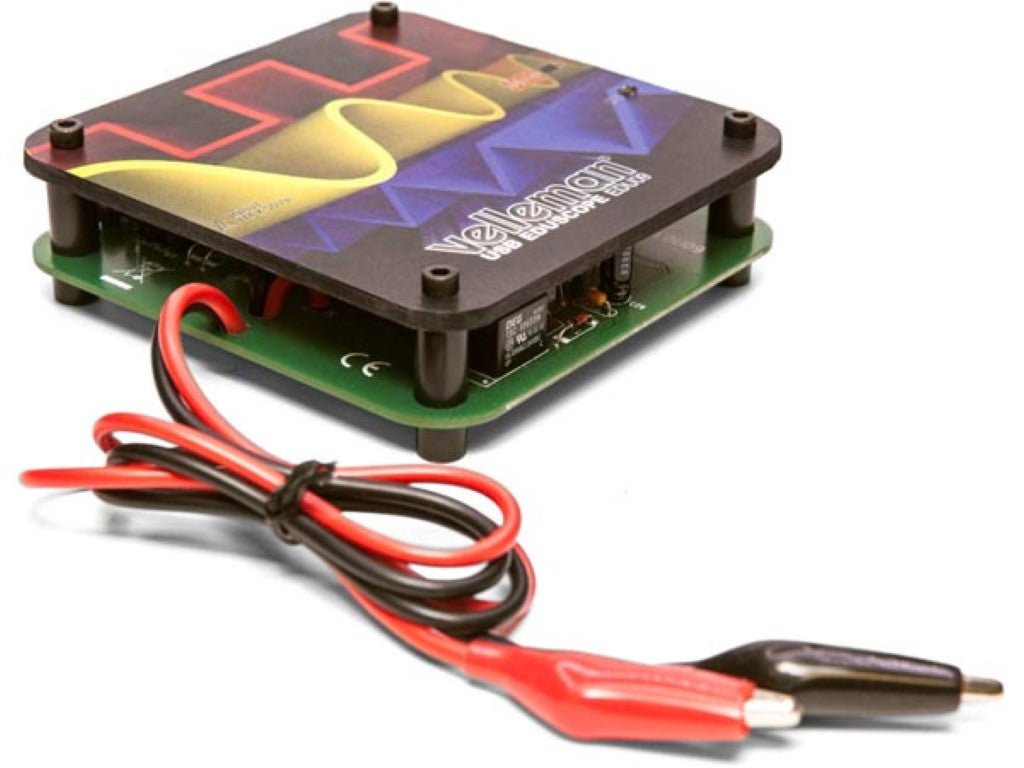

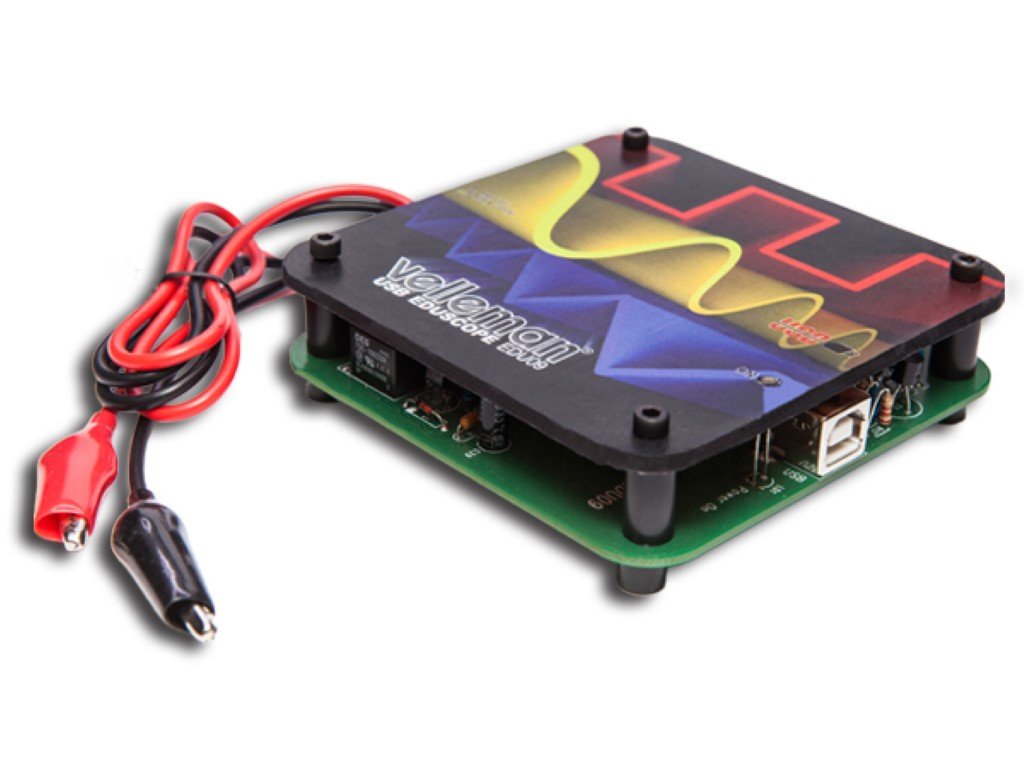

Oscilloscope Kit With PC display for measurements
Overview
Features
Specification
Oscilloscope :
Bandwidth: Dc To 200 Khz ± 3 Db
Input Impedance: 100 Kohm / 20 Pf
Maximum Input Voltage: 30 V (ac + Dc)
Time Base: 10 Μs To 500 Ms Per Division
Input Range: 100 MV To 5 V/division
Input Sensitivity: 3 MV Display Resolution
Readouts: True Rms, Dbv, Dbm, P To P, Duty Cycle, Frequency…
Record Length: 1k Samples
Sampling Frequency: 62.5 Hz To 1.5 Mhz
Sample History Function
Auto Set-up Function
Pre-trigger Function : On 0.1 Ms/div .. 500 Ms/div Ranges
Persistence Options: Colour Graded, Variable And Infinite
Spectrum Analyser:
Frequency Range: 0 .. 150 Hz To 75 Khz
Operating Principle: Fft (fast Fourier Transform)
Fft Resolution: 512 Lines
Transient Recorder:
Timescale: 20 Ms/div To 2000 S/div
Max. Recording Time: 9.4 H/screen
Automatic Storage Of Data
Record And Display Of Screens
Automatic Recording For More Than 1 Year
Max. Number Of Samples: 100/s
Min. Number Of Samples: 1 Sample/20 S
General Information:
Markers For: Amplitude/voltage And Frequency/time
Expert Or Basic Mode Selection In Software
Input Coupling: Dc And Ac
8 Bit Resolution
Storage Of Display And Data
Power Supply Through Usb: +/- 200 Ma
Uses Microsoft® Human Interface Device (hid) Driver, No External Driver Required
Dimensions: 94 X 94 Mm / 3.7 X 3.7"
Minimum System Requirements:
IBM Compatible PC
Windows® XP, Vista, 7, 8 *
SVGA Display Card (min. 1024 X 768)
Mouse
Free USB Port 1.1 Or 2.0
Downloads
Discover the VELLEMAN EDU09 Oscilloscope Kit, your ultimate tool for precise measurements and analysis. With a bandwidth of up to 200 kHz, true RMS readings, and a user-friendly PC display, this kit empowers both beginners and experts to effortlessly capture and analyze waveforms. Enjoy features like automatic data storage and a versatile transient recorder for extended monitoring, making it perfect for any electronics project. Elevate your measurement capabilities today!
