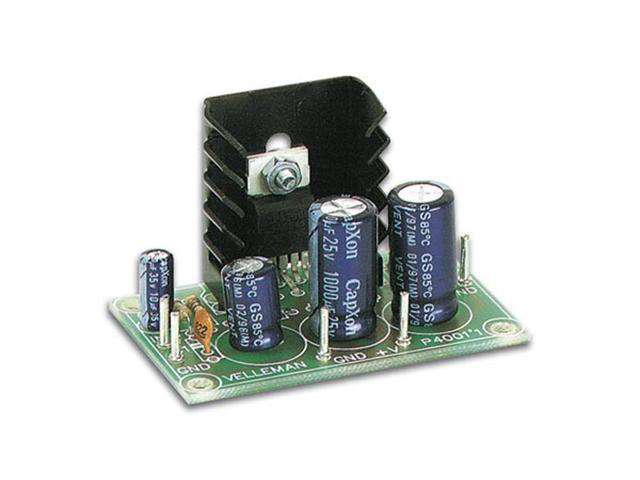

7W Mono Audio Amplifier Kit
• Function Group : Audio / Amplifiers etc.
Overview
This small amplifier is constructed around the TDA2003 IC, capable of delivering 4Wrms at 4 ohms. The IC is fully protected against overheating and short circuits. A conventional direct current is sufficient as power supply.
Features
Specification
- music power output: 7W / 4ohm
- RMS output: 3.5W / 4ohm or 2W / 8ohm
- total harmonic distortion: 0.05% (1W / 1kHz)
- frequency response: 20Hz to 20kHz (-3dB)
- signal/noise ratio: 86dB (A weighted)
- input sensitivity: 40mV / 150Kohm
- overload and short-circuit protected
- supply voltage: 15VDC (8 to 18VDC possible) / 0.5A
- dimensions: 55 x 35mm / 2.2 x 1.4"
