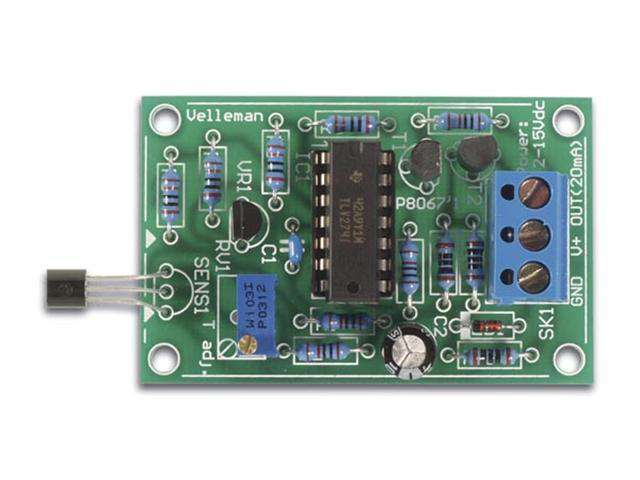

VELLEMAN K8067

 Applications : measure indoor and outdoor temperatures, control heating and/or cooling of rooms, equipment, etc... Monitor temperatures in processes, put a temperature readout on your website, check your pools temperature

• range: -20° ~ +70°C
• output: 0 ~ 20mA current loop
• output voltage compliance: 10V
• accuracy: 2° full range
• one single adjustment
• 3-Wire system: GND, +V and OUT
• power supply: 12VDC for 0 ~ 5V OUT / 15VDC for 0 ~ 10V OUT
• current consumption: 30mA max.
• dimensions: 55 x 35 x 15mm / 2.2 x 1.4 x 0.6"
