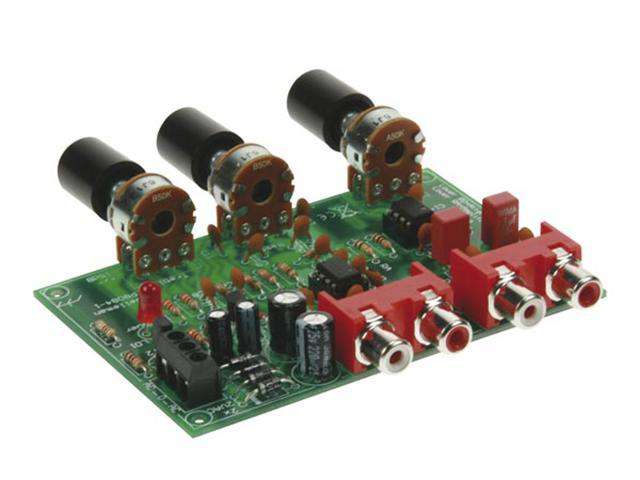

VELLEMAN K8084

This kit comes complete with all input / output connections and potentiometers. Furthermore it is possible to amplify or attenuate the input signal.

• Stereo volume control
• Stereo Baxandall bass and treble control
• Bass and Treble potentiometers with centre click
• Customizable attenuation or amplification
• Complete with knobs

• Supply Voltage : 2 x 12VAC / 100mA
• Frequency response : 3Hz - 500kHz (-3dB)
• Standard amplification : x1
• Signal to noise ratio: 98dB
• Harmonic distortion: < 0.005% (@1KHz)
• Maximum output: 5V _x000D_ RMS
• Tone control:
  • + and -15dB @ 20Hz
  • + and -15dB @ 15kHz
• Input impedance: 50k _x000D_ ohms
• PCB dimensions: 105 x 70mm
