VELLEMAN RX433N

SKU: VELLEMAN RX433N

BRAND: Velleman

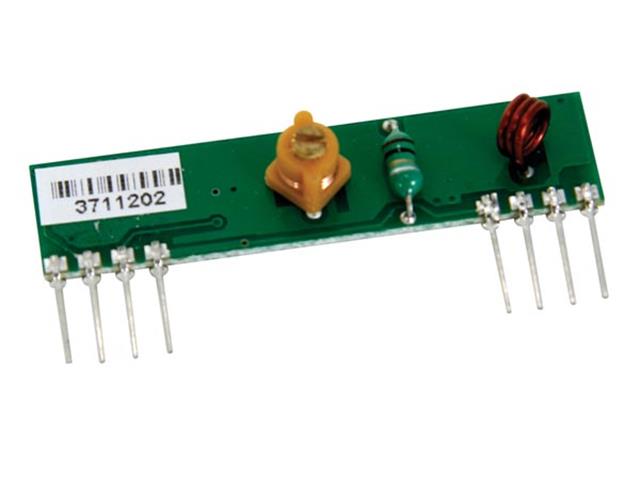

Receiver Module 433MHz 2meter Range Kit
• Function Group : Transmitters / Receivers / Remote

Receiver Module 433MHz 2meter Range Kit

Features

  • No adjustments required
  • Stable output
  • Suitable for remote controls, telemetry

Specifications

  • Range: 200 m in open air
  • Frequency: 433 MHz
  • Modulation: ASK
  • Sensitivity: -106 dBm
  • Power supply: 4.5-5.5 VDC
  • Digital and linear output
  • Pin numbers:

  • 1: gnd
  • 2: digital output
  • 3: linear output
  • 4: Vcc
  • 5: Vcc
  • : gnd
  • 7: gnd
  • 8: antenna (30-35cm)

Additional Information

Device Receiver Module
Type 433MHz
