VICT ARGOFET 100-3

Name: VICT ARGOFET 100-3 - Communica [Part No: VICT ARGOFET 100-3]
Brand: Victron
SKU: VICT ARGOFET 100-3
Price: 1608.70 ZAR
Availability: InStock

SKU: VICT ARGOFET 100-3

BRAND: Victron

In Stock
R 1,850.01_{(inc VAT)}
R 1,608.70_{(ex VAT)}

Collections: New Arrivals, Power

Type: Solar

Category: New, Solar Accessories

Victron ARGOFET Battery Isolator 100A, 3 Batteries - Battery Voltage:12&24V, Connection:M8 Bolts, Max Charge Current:100A, Max Alternator Current:100A, 65x120x200mm, 1.4kg

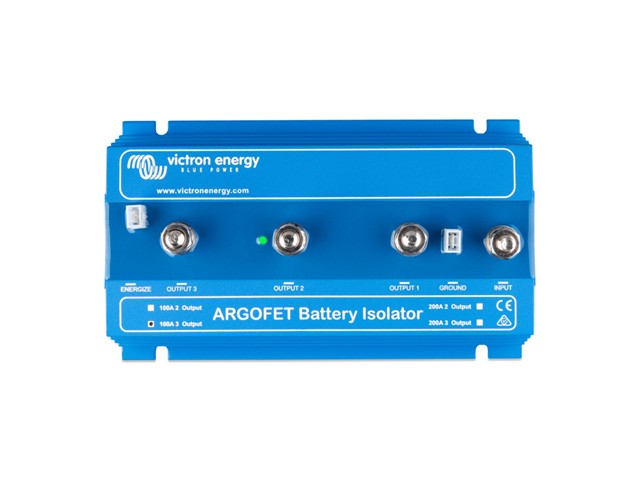

100A Battery Isolator

Overview

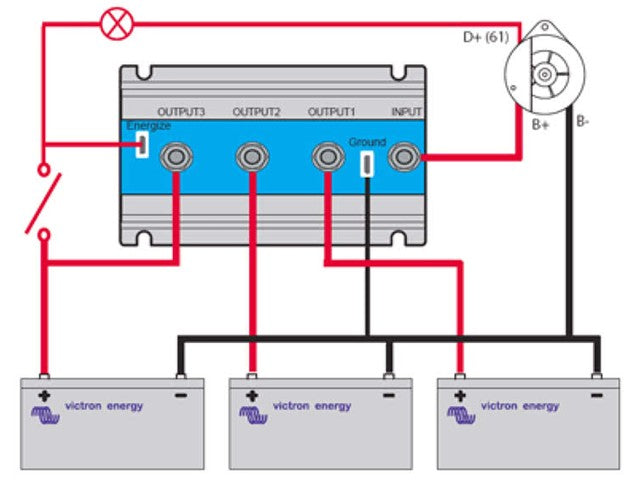

Similarly to Argodiode battery isolators, Argofet isolators allow simultaneous charging of two or more batteries from one alternator (or a single output battery charger), without connecting the batteries together. In contrast with Argodiode battery isolators, Argofet isolators have virtually no voltage loss. Voltage drop is less than 0,02 Volt at low current and averages 0,1 Volt at higher currents.

Specifications

Maximum charge current (A) : 100
Maximum alternator current (A) : 100
Number of batteries : 3
Nominal battery voltage : 12V and 24V
Weight kg (lbs) : 1,4 (3.1)
Dimensions: h x w x d in mm (h x w x d in inches) : 65 x 120 x 200 (2.6 x 4.7 x 7.9)

Downloads

Datasheet - VICT ARGOFET 100-3

Additional Information

Device

Battery Isolator
