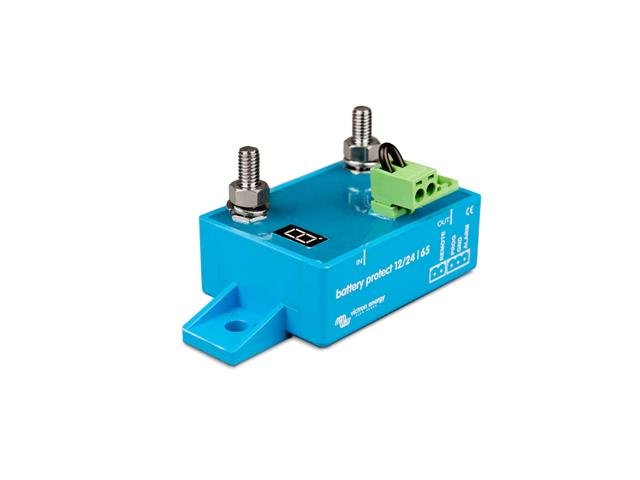

VICT BATTERY PROTECT 12/24V-65A

Name: VICT BATTERY PROTECT 12/24V-65A - Communica [Part No: VICT BATTERY PROTECT 12/24V-65A]
Brand: Victron
SKU: VICT BATTERY PROTECT 12/24V-65A
Price: 575 ZAR
Availability: InStock

SKU: VICT BATTERY PROTECT 12/24V-65A

BRAND: Victron

In Stock
R 661.25_{(inc VAT)}
R 575.00_{(ex VAT)}

Collections: Loadshedding, Power

Type: Battery Accessories

Category: Battery Protect, Loadshedding

Victron Battery Protect 12/24V 65A, Peak Current (During 30 Seconds) 300A, 7 Seg Display, Operating Voltage Range 6-35V, Disengage 10,5V or 21V Engage:12V or 24V, M6, 40x48x106mm, 0.2kg

Battery Protect 12/24V 65A

Specifications

BatteryProtect : BP-65
Maximum continuous load current : 65A
Peak current (during 30 seconds) : 300A
Operating voltage range : 6 –35V
Current consumption : When on: 1,5 mA When off or low voltage shutdown : 0,6 mA
Alarm output delay : 12 seconds
Maximum load on alarm output : 50 mA (short circuit proof)
Load disconnect delay : 90 seconds (immediate if triggered by the VE.Bus BMS)
Load reconnect delay : 30 seconds
Default thresholds : Disengage: 10,5V or 21V Engage: 12V or 24V
Operating temperature range : Full load: -40°C to +40°C (up to 60% of nominal load at 50°C)
Connection : M6
Weight : 0,2 kg 0.5 lbs
Dimensions (hxwxd) : 40 x 48 x 106 mm, 1.6 x 1.9 x 4.2 inch

Downloads

Datasheet - VICT BATTERY PROTECT 12/24V-65A

Additional Information

Device	Battery Protect
Type	12/24V 65A
