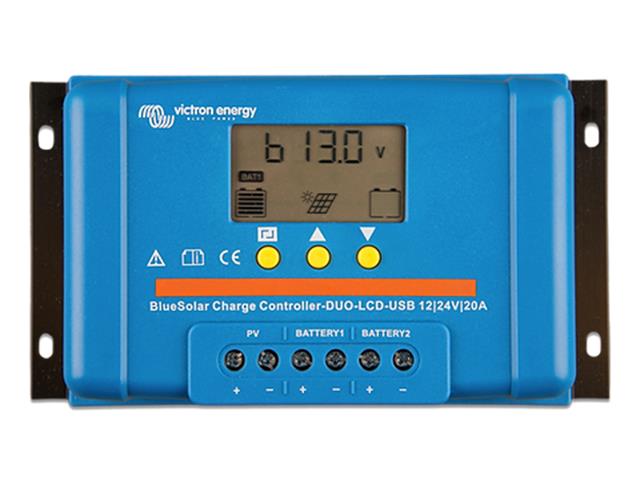

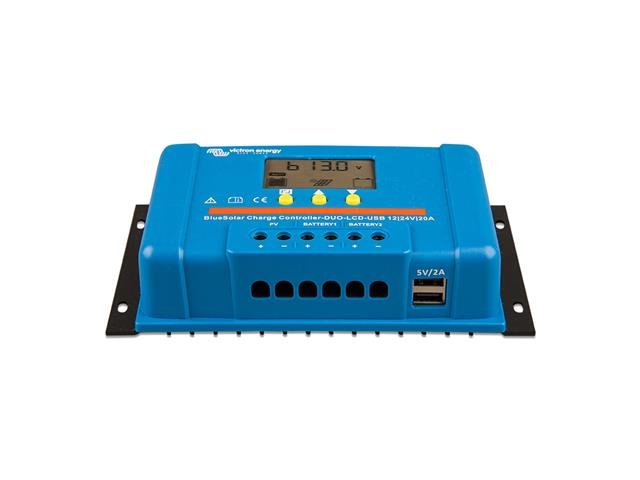

Victron Bluesolar PWM DUO Solar Charge Controller 12/24V 20A , 2 x USB Ports 5V/2A , LCD Display , Terminal size:16 mm²/AWG6 , IP20
Bluesolar PWM DUO Solar Charge Controller
Feature
- Liquid crystal display. For status monitoring and set-up
- External Temperature sensor included
- 2 Separate Battery outputs. Charges two separate batteries. For example, the starter battery and the service battery of a boat or mobile home.
- Protections. Protected against reverse polarity connection of the solar panels and/or battery
- Programmable battery charge algorithm. Algorithms for AGM, GEL or Flooded lead-acid batteries and LiFePO4 batteries (with internal BMS).
- Two 5 Volt USB outputs. Maximum current of the two outputs combined: 2A
Specifications
- Battery Voltage : 12/24 V with automatic system voltage detection [for LiFePO4 no automatic system voltage detection]
- Rated charge current: 20A
- Second battery output:Yes
- Load output: 2 USB ports 5V/2A
- Automatic load disconnect: 10.5V/21V
- Maximum solar voltage: 28V / 55V (1)
- Self-consumption: 10 mA
- Protections: Battery reverse polarity (fuse) Over temperature
- Grounding: Common negative
- Operating temp. range: -35 to +55°C (full load)
- Humidity (non-condensing): Max 95%
DEFAULT SETTINGS
- Charge voltage 'absorption' (2): 14.4V / 28,8V
- Charge voltage 'float' (2): 13.7V / 27,4V
- Battery temperature sensor: Yes, remote sensor [included]
- Temperature compensation: -30mV/oC / -60mV/oC
ENCLOSURE
- Protection class:IP20
- Terminal size: 16 mm2 / AWG6
- Weight: 0,3kg
- Dimensions:(h x w x d) 101.5 x 184.0 x 47.1 mm [4.0 x 7.4 x 1.8 inch]
STANDARDS
- Safety: IEC 62109-1
- EMC: EN 61000-6-1, EN 61000-6-3, ISO 7637-2
