• Load output with low battery voltage disconnect function.
• Lighting control function, one timer only.
• Two digit seven segment display for quick and easy setting of the load output functionality, including
  timer setting.
• Three stage battery charging (bulk, absorption, float), not programmable.
• Load output protected against over load and short circuit.
• Protected against reverse polarity connection of the solar array and/or battery.

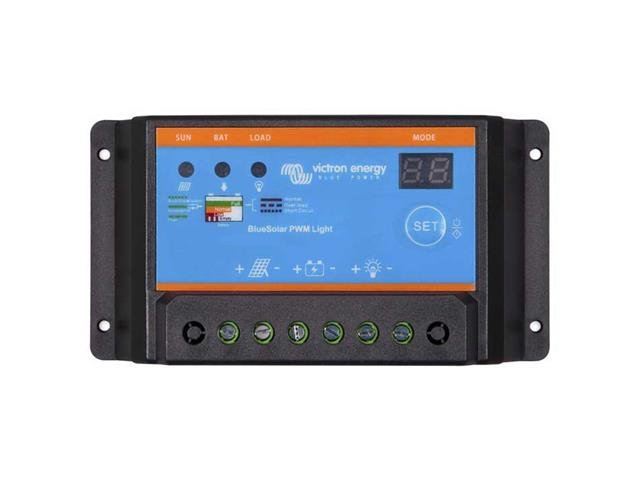

• BlueSolar PWM-Light : 12/24-10
• Battery Voltage : 12/24 V with automatic system voltage detection
• Automatic load disconnect  : Yes
• Maximum solar voltage 28V / 55V (1)
• Self-consumption : < 10 mA
• Load output : Manual control + low voltage disconnect
• Protection : Battery reverse polarity (fuse), Output short circuit, Over temperature
• Overload protection

  • Shut down after 60 s in case of 130% load
  • Shut down after 5 s in case of 160% load
  • Short circuit: immediate shut down
• Grounding  : Common positive
• Operating temp. range  : -20 to +50°C (full load)
• Humidity (non-condensing) : Max 95%

BATTERY

• Charge voltage 'absorption' : 14.2V / 28,4V
• Charge voltage 'float' : 13.8V / 27,6V
• Low voltage load disconnect : 11,2V / 22,4V
• Low voltage load reconnect

  • 12,6V / 25,2V (manual)
  • 13,1V / 26,2V (automatic)

ENCLOSURE

• Protection class : IP20
• Terminal size : 5 mm² / AWG10
• Weight : 0,15kg
• Dimensions (h x w x d) : 70 x 133 x 33,5 mm (2.8 x 5.3 x 1.3 inch)
