BRAND: Victron

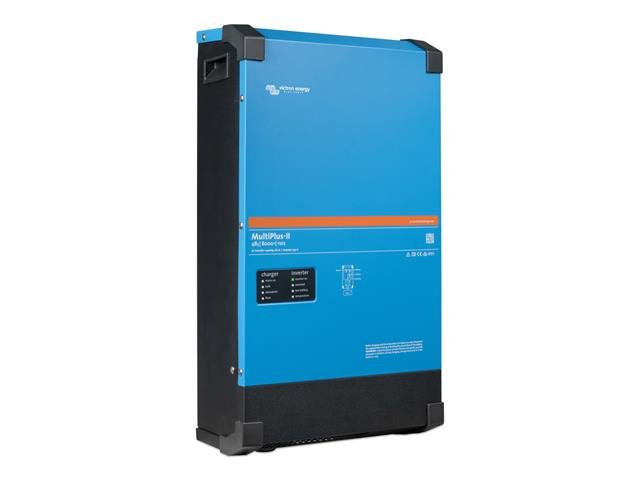

Victron Multiplus-II Pure Sine Wave Inverter/Charger 48V 8000VA 6400/5500W, Peak Power15000W, 110A Charger, Transfer Switch:100A, 230VAC, Battery Temperature Sensor, 642x363x206mm, 42Kg

Multiplus-II Pure Sine Wave Inverter/Charger


The MultiPlus-II is a multifunctional inverter/charger with all the features of the MultiPlus, plus an external current sensor option which extends the PowerControl and PowerAssist function to 50A resp. 100A. The MultiPlus-II is ideally suited for professional marine, yachting, vehicle and land based off-grid applications. It also has built-in anti-islanding functionality, and an increasingly long list of country approvals for ESS application. Several system configurations are possible. For more detailed information see the ESS Design and configuration manual


  • Two AC Outputs,
  • Can be configured to operate with a PV array and a MPPT solar charge controller, or with a PV array and a PV inverter,
  • Frequency Shifting - regulating the output power by changing the frequency to avoid possible damage to equipment or alarm modes.
  • Built-in anti-islanding - to quickly stop feeding power into the grid from your solar system
  • Uninterrupted AC power (UPS function) - If power main AC power supply is lost, it takes less than 20 milliseconds for the Multiplus to switch to battery back-up power.
  • On-site system configuration, monitoring and control,
  • Remote configuring and monitoring with a GX device.
  • Maximum AC input current of 100A and Maximum battery charge current of 110A.
  • 5-year standard Victron warranty.
This Multiplus 8 and 10kVA cannot be paralleled or configured in a three-phase system.

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. Communica will not be held liable for any product malfunctions as a result of incorrectly installed systems.


Additional Information

Device Inverter/Charger
Type Multiplus-II | Pure Sine Wave
