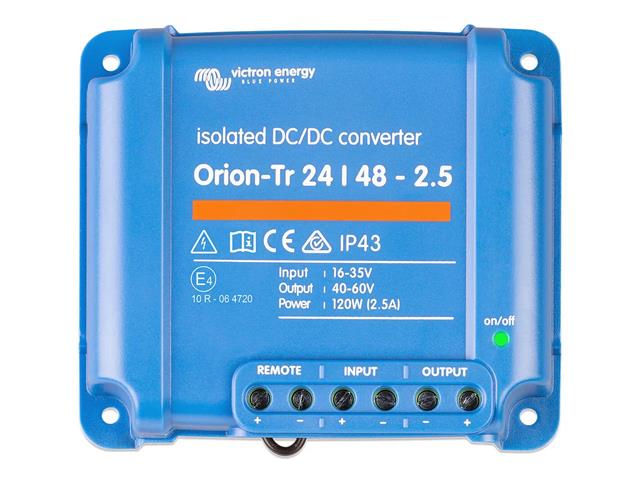

VICT ORION-TR 24/48 2,5A

SKU: VICT ORION-TR 24/48 2,5A

BRAND: Victron


Victron Isolated DC-DC Converter 24V 2,5A 120W, I/P Votage Range: 16→35VDC, O/P Voltage Adjust Range:40→60VDC, 6mm² AWG6, IP43, {100x113x47mm}, 0.42Kg

Isolated DC-DC Converter

Feature

  • Isolated converters : 110 – 120 W : Orion-Tr 24/48-2,5 (120 W)
  • Input voltage range (1) : 16-35 V
  • Under voltage shut down : 14 V
  • Under voltage restart : 15 V
  • Nominal output voltage : 48.2 V
  • Output voltage adjust range : 40-60 V
  • Output voltage tolerance : +/- 0.2 V
  • Output noise : 2mV rms
  • Cont. output current at nominal
  • output voltage and 25 °C : 2.5 A
  • Maximum output current (10 s) at nominal output voltage : 3.0 A
  • Short circuit output current : 19 A
  • Cont. output power at 25 °C : 120 W
  • Cont. output power at 40 °C : 115 W
  • Efficiency : 88 %
  • No load input current : < 120 mA
  • Galvanic isolation : 200 V dc between input, output and case
  • Operating temperature range : -20 to +55 °C (derate 3 % per °C above 40 °C)
  • Humidity : Max. 95 % non-condensing
  • DC connection : Screw terminals
  • Maximum cable cross-section : 6 mm2 AWG10
  • Weight : 0,42 kg (1 lb)
  • Dimensions hxwxd : 100 x 113 x 47 mm (4.0 x 4.5 x 1.9 inch)

Downloads

Additional Information

Device Converter
Type Isolated | DC-DC
