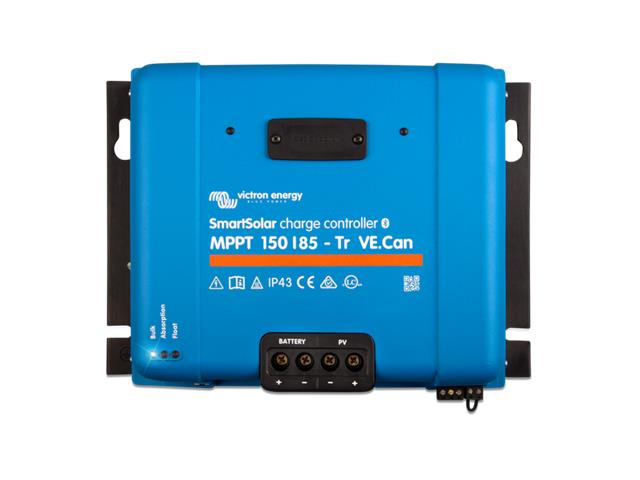

Victron Smartsolar Charge Controller MPPT150/85 Tr VE.Can , 12-24-48V (36V: Manual) 85A , NORMAL PV 1a,b 12V@1200W , 24V@2400W , 36V@3600W , 48V@4900W , 35mm²/AWG2 , 216x295x103mm , IP43 , 4.5KG
Victron Smartsolar Charge Controller
Overview
MPPT 150/70 VE.Can up to MPPT 150/100 VE.Can
Specifications
- Battery voltage: 12/24/48 V Auto Select (36 V: manual)
- Rated charge current: 85 A
- Nominal PV power, 12 V 1a,b):1200 W
- Nominal PV power, 24 V 1a,b):2400 W
- Nominal PV power, 36 V 1a,b):3600 W
- Nominal PV power, 48 V 1a,b):4900 W
- Max. PV short circuit current 2): 70 A (max 30 A per MC4 conn.)
- Maximum PV open circuit voltage :150 V absolute maximum coldest conditions 145 V start-up and operating maximum
- Maximum efficiency: 98 %
- Self-consumption: Less than 35 mA @ 12 V / 20 mA @ 48 V
- Charge voltage 'absorption': Default setting: 14,4 / 28,8 / 43,2 / 57,6 V (adjustable with: rotary switch, display, VE.Direct or Bluetooth)
- Charge voltage 'float' :Default setting: 13,8 / 27,6 / 41,4 / 55,2 V (adjustable: rotary switch,display, VE.Direct or Bluetooth)
- Charge voltage 'equalization': Default setting: 16,2 V / 32,4 V / 48,6 V / 64,8 V (adjustable)
- Charge algorithm: multi-stage adaptive (eight preprogrammed algorithms) or user defined algorithm
- Temperature compensation: -16 mV / -32 mV / -64 mV / °C
- Protection: PV reverse polarity / Output short circuit / Over temperature
- Operating temperature: -30 to +60 °C (full rated output up to 40 °C)
- Humidity: 95 %, non-condensing
- Maximum altitude : 5000m (full rated output up to 2000m)
- Environmental condition: Indoor, unconditioned
- Pollution degree: PD3
- Data communication: VE.Can, VE.Direct and Bluetooth
- Remote on/off : Yes (2 pole connector)
- Programmable relay: DPST AC rating: 240 VAC / 4 A DC rating: 4 A up to 35 VDC, 1 A up to 60 VDC
- Parallel operation: Yes, parallel synchronised operation with VE.Can (max. 25 units) or Bluetooth (max. 10 units)
