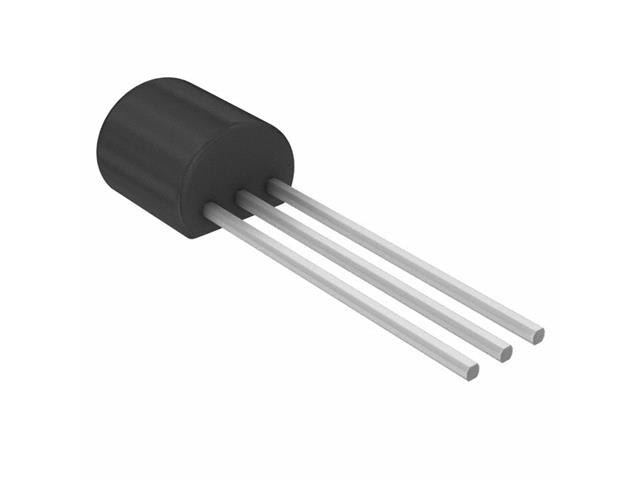

VN2222LL

Name: VN2222LL - Communica [Part No: VN2222LL]
Brand: Communica
SKU: VN2222LL
Price: 5.09 ZAR
Availability: OutOfStock

SKU: VN2222LL

BRAND: Communica

Sold Out
R 5.85_{(inc VAT)}
R 5.09_{(ex VAT)}

Collections: Semiconductors

Type: Transistors

Category: N Channel Mosfet Transistor

N DMOS Power FET 60V 7,5R 0,75A TO92

Specifications

Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	230mA (Tj)
Drive Voltage (Max Rds On, Min Rds On)	5V, 10V
Rds On (Max) @ Id, Vgs	7.5Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id	2.5V @ 1mA
Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	60 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	400mW (Ta), 1W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-92-3

Downloads

Datasheet - VN2222LL

Additional Information

CatGroup	Transistor
Device	Transistor

Discover the VN2222LL N DMOS Power FET, delivering reliable performance with a 60V drain-to-source voltage and low on-resistance of 7.5 Ohms. Ideal for efficient power management in various applications, this versatile transistor ensures optimal thermal stability and operates in extreme temperatures. Upgrade your circuit designs today with this high-quality, dependable component.
