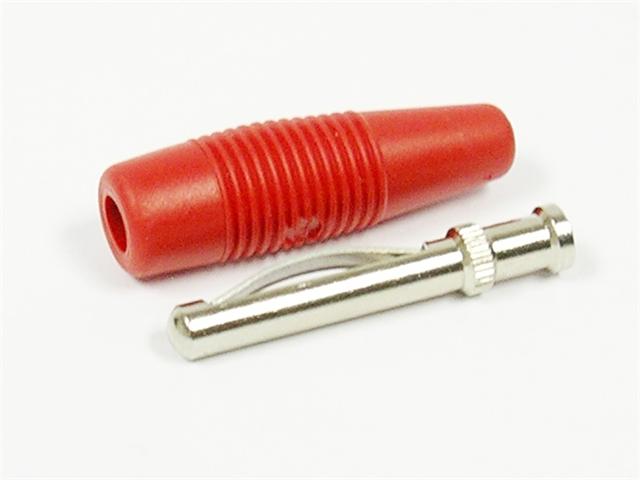

Fully mating connector, shatter-proof, flexible insulated sleeve. The tapering sleeve end also serves as kinking protection for the lead. Solder connection up to maximum cable cross-section of 2.5 mm². Nickel-plated brass contact material.

• Connection : Solder Connection
• Rated Voltage(1) : 30 VAC / 60 VDC
• Measurement Cat. acc. to IEC 61010 : CAT I
• Rated Current(1) (consider derating curve) : 30 A
• Material Plug : Brass, Nickel Plated
• Housing Material : PVC-P
• Temperature Range acc. To IEC61010(2) : -25 °C to +70 °C
• Standard : IEC 61010
• for normal environmental conditions -5°C to +40°C

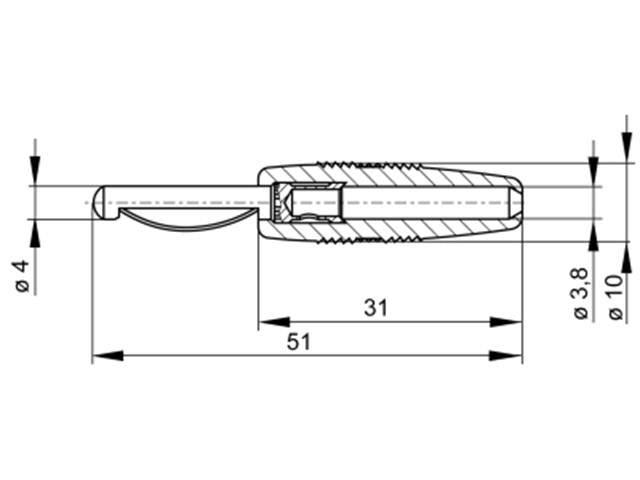

1. Datasheet - VON30

Device	Plug
Type	Banana | Nickel Plated | Brass
Colour	Red
Size	4mm
