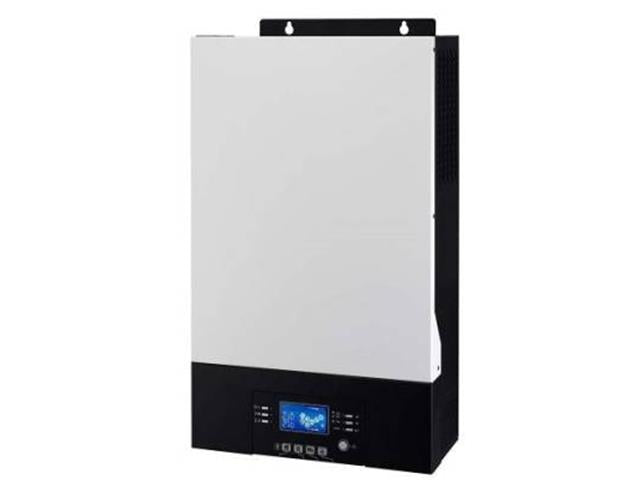

VP MKS 8KM MCR

SKU: VP MKS 8KM MCR

BRAND: Voltronic


Voltronic Power Pure Sine Wave Inverter 8000VA/8000W 48VDC, O/P:230VAC, Max PV:8000W OCV:500VDC, Built-in MPPT, Max Solar Charge Current 120A, Max AC Charge Current 120A, USB/RS232/RS485/WIFI/DRY-CONTACT, 147X432X553, 18.4kg

Power Pure Sine Wave Inverter

Specifications

  • MODEL:  Axpert MAX 8000
  • Rated Power : 8000VA/8000W
  • PARALLEL CAPABILITY : Yes, up to 6 units

INPUT

  • Voltage : 230 VAC
  • Selectable Voltage Range
  • 170-280 VAC (For Personal Computers)
  • 90-280 VAC (For Home Appliances)
  • Frequency Range : 50 Hz/60 Hz (Auto sensing)

OUTPUT

  • AC Voltage Regulation (Batt. Mode) : 230VAC ± 5%
  • Surge Power : 16000VA
  • Efficiency (Peak) : 90% ~ 93%
  • Transfer Time : 15 ms (For Personal Computers) ; 20 ms (For Home Appliances)
  • Waveform : Pure sine wave
  • No Load Power Consumption : < 70W
  • DC Voltage (Optional) : 12 VDC ± 5%, 100W

BATTERY

  • Battery Voltage : 48 VDC
  • Floating Charge Voltage : 54 VDC
  • Overcharge Protection : 66 VDC

SOLAR CHARGER & AC CHARGER

  • Solar Charger Type : MPPT
  • Maximum PV Array Power : 8000W (4000W x 2)
  • MPPT Range @ Operating Voltage : 90 ~ 450 VDC
  • Maximum PV Array Open Circuit Voltage : 500 VDC
  • Maxmum Solar Charge Current : 120 A
  • Maximum AC Charge Current : 120 A
  • Maximum Charge Current : 120 A

PHYSICAL

  • Dimension, D x W x H (mm) : 147.4 x 432.5 x 553.6
  • Net Weight (kgs) : 18.4
  • Communication Interface : USB/RS232/RS485/WiFi/Dry-contact

OPERATING ENVIRONMENT

  • Humidity : 5% to 95% Relative Humidity(Non-condensing)
  • Operating Temperature : -10°C to 50°C
  • Storage Temperature : -15°C to 60°C

Downloads

Additional Information

Device Inverter
Type Power | Pure Sine Wave
