VSB24STB

Name: VSB24STB - Communica [Part No: VSB24STB]
Brand: VSB
SKU: VSB24STB
Price: 32.50 ZAR
Availability: InStock

SKU: VSB24STB

BRAND: VSB

R 37.38_{(inc VAT)}
R 32.50_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over ZAR 1,000.00

Collections: Electromechanical

Type: Relays

Category: Low Signal PCB Relays

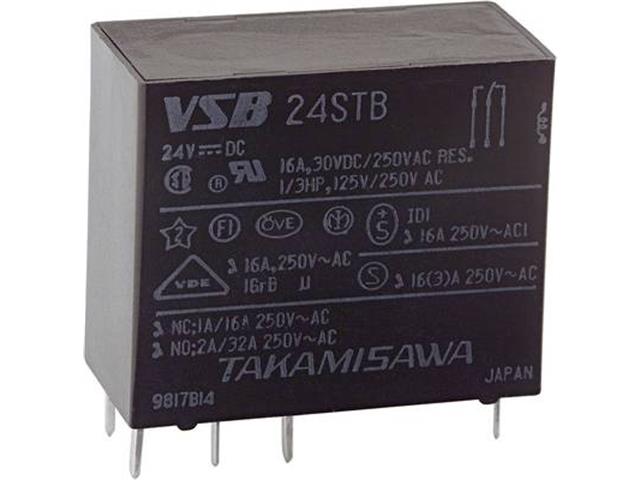

Relay PCB 1C 24VDC 1100E 16A Sealed

Specifications

Contact Material : Silver
Mount : Through Hole
Number of Pins : 8

Technical

Coil Current : 21.82 mA
Coil Resistance : 1.1 kΩ
Coil Voltage (AC) : 24 V
Coil Voltage (DC) : 24 V
Contact Current Rating : 16 A
Max Current Rating : 16 A
Max Operating Temperature : 75 °C
Max Voltage Rating (AC) : 380 V
Max Voltage Rating (DC) : 150 V
Min Operating Temperature : -40 °C
Operate Time : 15 ms
Power Consumption : 530 mW
Resistance : 1.1 kΩ
Termination : PC Pin
Throw Configuration : SPDT
Voltage Rating (AC) : 380 V

Dimensions

Depth : 12.9 mm
Length : 29.2 mm

Additional Information

Device	Relay
Type	PCB \| Sealed

Enhance your projects with the VSB24STB Relay PCB, featuring a sealed design for superior protection. With a robust contact rating of 16A and a 24VDC coil, this reliable relay ensures optimal performance in demanding conditions. Its compact size and easy through-hole mounting make it ideal for various applications. Upgrade your circuitry with this dependable solution today!
