W16B-CCT-1L/SC-M25

Name: W16B-CCT-1L/SC-M25 - Communica [Part No: W16B-CCT-1L/SC-M25]
Brand: Wain
SKU: W16B-CCT-1L/SC-M25
Price: 344 ZAR
Availability: InStock

SKU: W16B-CCT-1L/SC-M25

BRAND: Wain

R 395.60_{(inc VAT)}
R 344.00_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over ZAR 1,000.00

Collections: Connectors

Type: Power Connectors

Category: Heavy Duty Power Connector Housings & Hoods

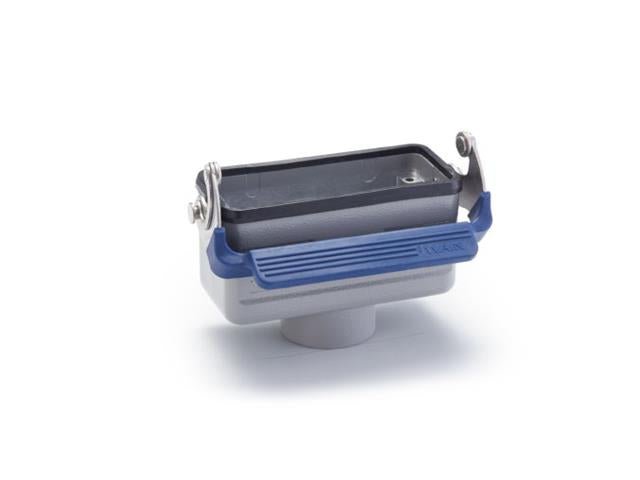

Housing In-Line Top Entry Metal with 1 Locking Lever For "16B" Series. M25 IP67

Housing In-Line Top Entry Metal

Specifications

Material	aluminium die-cast
Colour	grey
Locking element
-Lever type	metal elastic pressing
-Material	stainless steel+TPR
Hoods/Housings seal	NBR
Limiting temperatures	-40℃...+125℃
Flammability acc. to UL 94	V0
Degree of protection acc.to DIN EN60 529 for coupled connector	IP67

Downloads

Datasheet - W16B-CCT-1L/SC-M25

Additional Information

Device	Housing
Type	In-Line \| Top Entry Metal

Discover the W16B-CCT-1L/SC-M25 metal housing, designed for the "16B" series. With a robust IP67 rating, it ensures superior protection against dust and water, while the stainless steel locking lever offers reliable security. Ideal for demanding environments, this durable aluminium die-cast housing withstands extreme temperatures from -40℃ to +125℃, making it the perfect choice for your industrial applications.
