WSC3P

Name: WSC3P - Communica [Part No: WSC3P]
Brand: Fischer Elektronik
SKU: WSC3P
Price: 12.65 ZAR
Availability: InStock

SKU: WSC3P

BRAND: Fischer Elektronik

R 14.55_{(inc VAT)}
R 12.65_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Thermal Management

Type: Heatsinks

Category: Insulating Tube

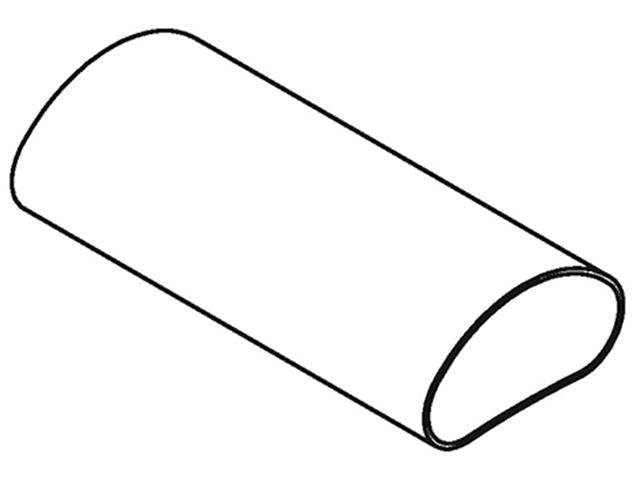

Insulating Tube for TO3P Dia : 13.5mm L : 25mm

Insulating Tube for TO3P

Specifications

Colour : Green
Slide type : Slide WS
for Transistor : TO 3 PF
Material : Silicone foil, standard
Thermal resistance : 0.4 K/W
Material thickness : 0,3^+0.1/-0.0 Mm
Hardness : 75 Shore A
Thermal conductivity : 1.22 W/m-K
Temperature range : -60°C ... +180°C
Insulation resistance : 2,9·1015 • Cm
Stretchability : 100 %
Breakthrough resistance : 10 kV
Flammability class : UL 94 V-0
Delivery form : Insulating hose

Features

Thermally conductive foil made of siliconelastomer
Silicone foil, standard (WS).

Additional Information

Group	Electronic Hardware
Device	Tube
Type	Tube

Enhance your electronic projects with the WSC3P Insulating Tube, designed for TO3P transistors. Crafted from high-quality silicone foil, this tube provides exceptional thermal resistance and insulation, ensuring optimal performance in temperatures ranging from -60°C to +180°C. With a robust 10 kV breakthrough resistance and excellent stretchability, it’s the perfect choice for reliable and efficient electrical insulation.
