WVS 7IN CTOUCH DISPL+C 1024X600

SKU: WVS 7IN CTOUCH DISPL+C 1024X600

BRAND: Waveshare


7Inch Capacitive Touch Screen LCD (H) with Case, 1024×600, HDMI, IPS. SUPPORTS: RASPBIAN, 5-Points Touch, Ubuntu / Kali / Win10 IoT, Single Point Touch, Retropie-all Driver Free

7Inch Capacitive Touch Screen LCD

Overview

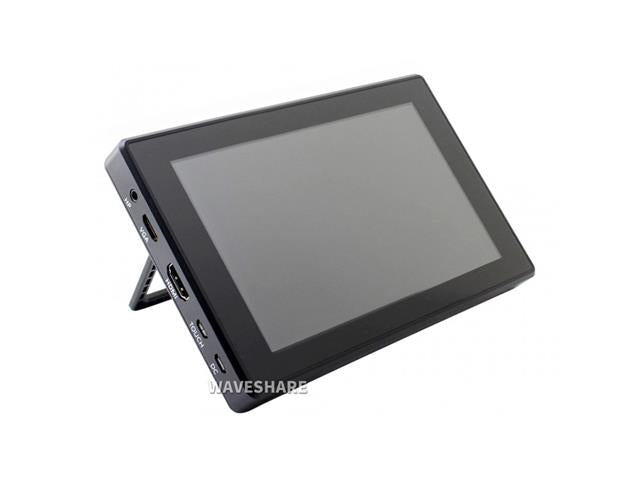

1024 × 600, 7-inch Capacitive Touch Screen LCD, HDMI interface, supports various systems. Toughened glass capacitive touch panel, 6H hardness (only the Case version has hardness glass). It supports Raspberry Pi and can also be used as a computer monitor.

Features

  • 7inch IPS screen, 1024 x 600 hardware resolution, configurable by software (up to 1920 x 1080).
  • Toughened glass capacitive touch panel, 6H hardness (case version only).

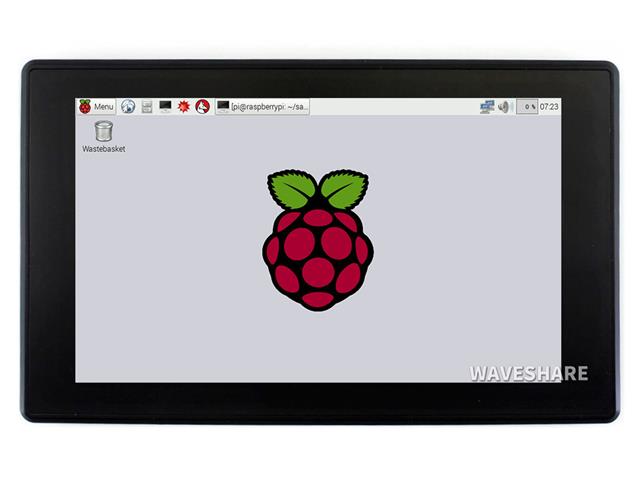

  • When used with Raspberry Pi, supports Raspberry Pi OS / Ubuntu / Kali and Retropie.
  • Use with Windows PC, support Windows 11 / 10 / 8.1 / 8 / 7, 5-points touch.
  • Multi-languages OSD menu, for power management, brightness/contrast adjustment, etc.
  • It has a 3.5mm audio jack and supports HDMI audio output.
  • Supports VGA input

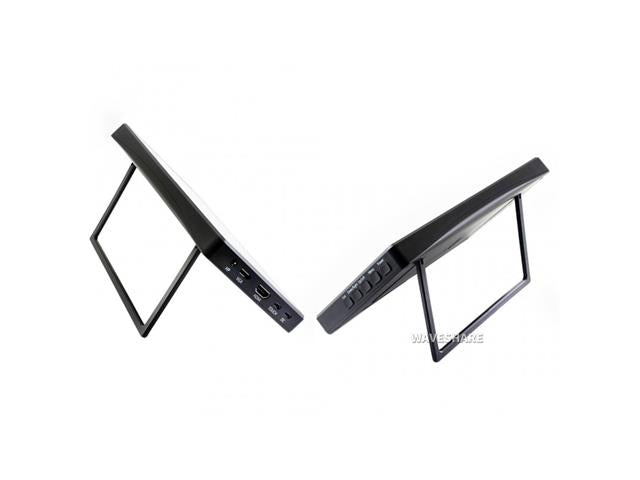

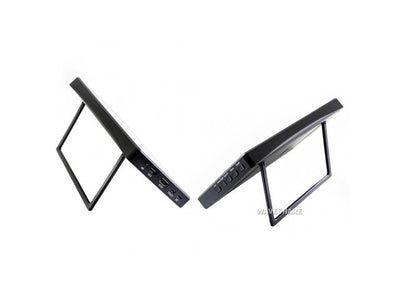

  • High-quality PC case, optional tilt angle: 30°/50°(case version only).

Specifications

  • Size : 7"
  • Resolution : 1024×600
  • Brightness: 450cd/m²
  • Display Port : HDMI / VGA
  • Display Panel : IPS
  • Viewing Angle : 170°
  • Touch Type : Capacitive
  • Touch Points : 5-Points
  • Touch Port : USB
  • Touch Panel : Toughened Glass
  • OSD Menu : Brightness/Contrast
  • Audio Output : 3.5mm Jack
  • Gaming : Xbox360/PS4/Switch
  • Enclosure : Polycarbonate
  • Certification : CE

Additional Information

Device Touch Screen
Type 7Inch | Capacitive | LCD
References

wiki/7inch_HDMI_LCD_(H)_(with_case)
