Overview

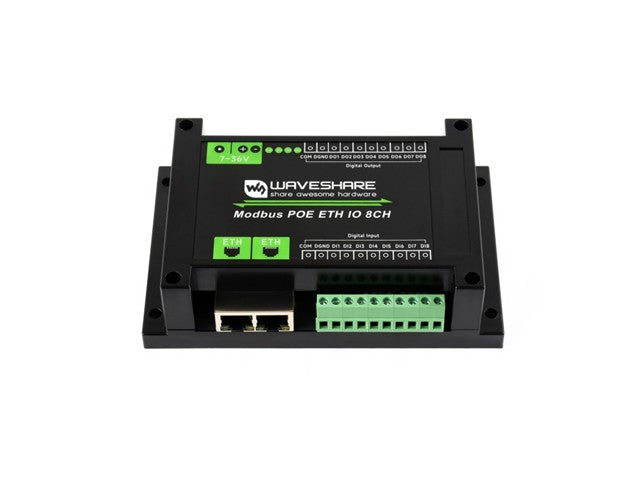

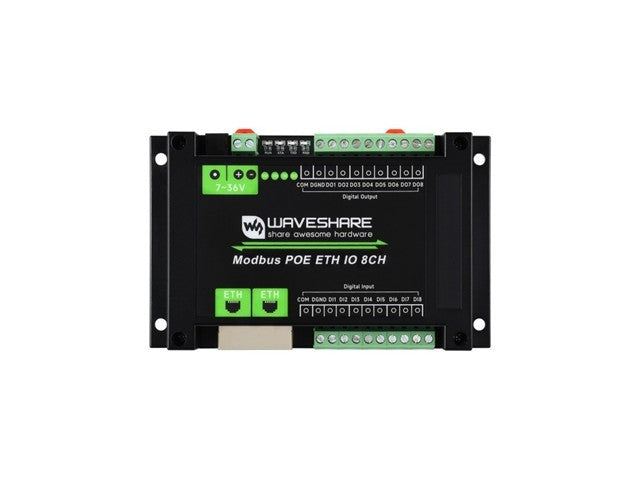

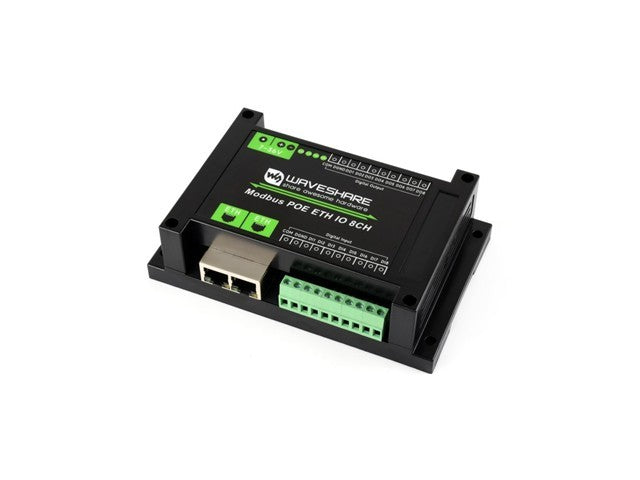

The Modbus POE ETH IO 8CH is an industrial 8DI / 8DO isolated digital input / output module with dual Ethernet interfaces control, it supports passive and active digital input. Adopts Modbus RTU / Modbus TCP protocols with built-in protection circuits such as power isolation, optocoupler isolation, resettable fuse, and TVS.
Features
- Onboard voltage regulator chip, supports 7V ~ 36V wide range power supply and PoE power supply
- Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal

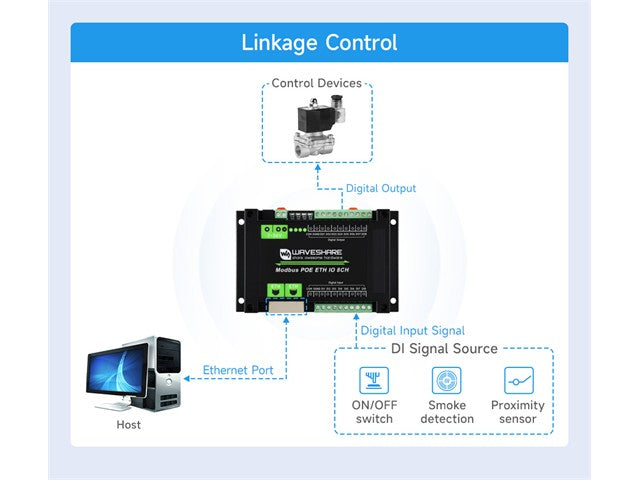

- Supports passive and active digital input, with bi-directional optocoupler isolation, built in debouncing algorithm. The relay supports digital input linkage control or toggle control
- The output utilizes Darlington transistor with optocoupler isolation for stronger driving capability, up to 500mA sink current, and built-in flyback diode protection
- Features flash-on and flash-off functions, by passing arguments to the command, it is possible to turn on the output for a while and then turn it off automatically

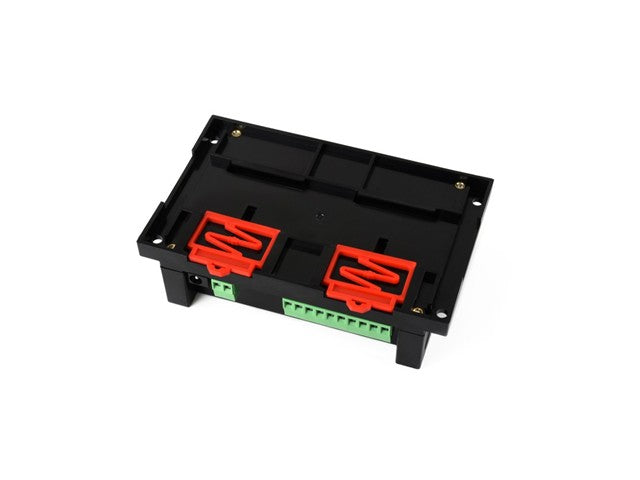

- Rail-mount case design, easy to install, safe to use
- Onboard LEDs for indicating the input / output status, MCU status, and signal transceiving status

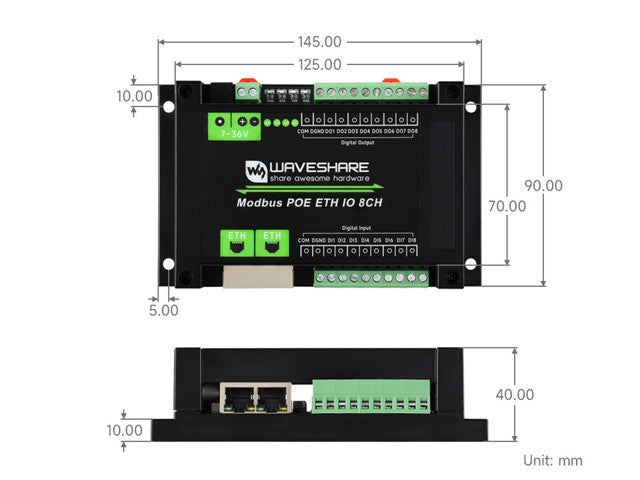

Specifications
| Supply Voltage |
DC 7~36 V |
| Power Supply Methods |
PoE Ethernet port, DC 5.5*2.1 power jack, or screw terminal (7 ~ 36 V) |
| Communication Interface |
PoE Ethernet port, supporting IEEE 802.3af standard |
| Digital Input |
8DI, 5 ~ 36 V, dry contact/wet contact (NPN or PNP type), built-in bidirectional optocoupler |
| Digital Output |
8DO, 5 ~ 40 V, open-drain output, output load 500 mA/channel (MAX) |
| Modbus Protocol |
Modbus RTU protocol or Modbus TCP protocol |
LED Indicator Descriptions
| LED Indicator |
Status Description |
| RUN LED |
Ethernet port running indicator. After the Ethernet port is working normally, it outputs a square wave with a period of 2 seconds |
| STA LED |
MCU indicator. Flashes when the MCU is operating normally |
| TXD LED |
Transmit indicator, lights up when transmitting data |
| RXD LED |
Receive indicator, lights up when receiving data |
| Left Port Green LED |
Illuminates when Ethernet port 1 is connected to an Ethernet network |
| Right Port Green LED |
Illuminates when Ethernet port 2 is connected to an Ethernet network |
| Left Port Yellow LED |
Illuminates when a TCP connection is established. Can be used to check if a communication link is established between the module and the host software |
| Right Port Yellow LED |
Data activity LED. The state of this yellow LED changes when data is being transmitted over the Ethernet port, useful for determining if data transfer is occurring |
Package Content
- Modbus POE ETH IO 8CH x1
- Screwdriver x1
