WVS ESP32-S2 MCU WIFI BOARD+LCD

SKU: WVS ESP32-S2 MCU WIFI BOARD+LCD

BRAND: Waveshare


ESP32-S2 MCU WiFi Development Board, 2.4 GHz, WiFi, with LCD. 240 MHZ XTENSA Single-core 32-Bit LX7 Microcontroller. C/C++, Micropython, Circuitpython Support

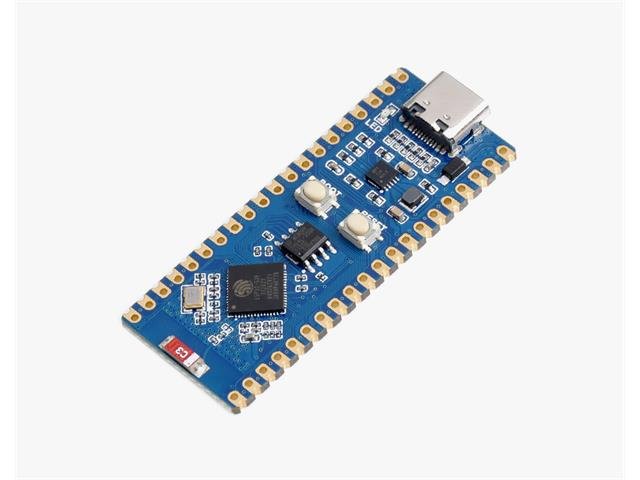

ESP32-S2 MCU WiFi Development Board

Overview

This is a WiFi development board with compact size, plenty peripheral interfaces, integrated low-power Wi-Fi System-on-Chip (SoC) and mass memory, supporting Raspberry Pi Pico expansion board ecosystem. Equipped with hardware crypto accelerator, RNG, HMAC and Digital Signature module, it can meet the security requirements of the Internet of Things. Multiple low-power operating states to satisfy power requirements in IoT, mobile devices, wearable electronics, smart home and other application scenarios, etc.

Features

  • Support Raspberry Pi Pico expansion board ecosystem to satisfy creative IoT application development
  • Xtensa single-core 32-bit LX7 microprocessor, ESP32-S2FH4, support clock frequency up to 240 MHz
  • Integrated 320KB SRAM, 128KB ROM, 8MB PSRAM, 4MB Flash memory
  • Support IEEE802.11 b/g/n, on-board 2.4 GHz WiFi ceramic antenna, up to 150 Mbps data transfer rate
  • USB-C connector, no more plug orientation problem
  • On-chip integrated full-speed USB OTG interface, LCD interface (8-bit serial RGB/8080/6800), TWAI controller (ISO11898-1 compatible), capacitive sensor GPIO, temperature sensor and RMT (TX/RX)
  • On-board 1.8A current high efficiency boost/buck DC-DC TPS63000 power supply IC
  • Support a variety of low-power operating states for adjusting the optimal balance between communication distance, data rate and power consumption, to meet the power requirements of various application scenarios
  • Castellated module allows soldering direct to user-designed carrier boards

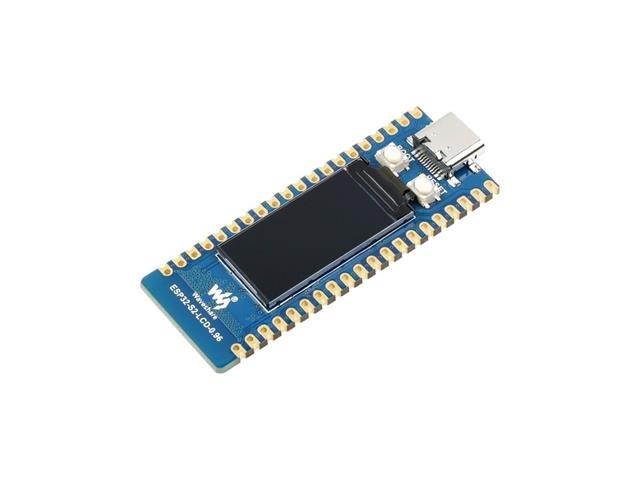

ESP32-S2 LCD Ver. key features include:

  • All features of the ESP32-S2 Standard Ver.
  • On-board 0.96inch 160×80 pixels 65K color IPS LCD display
  • On-board single 3.7V lithium battery charge/discharge header, suitable for mobile IoT product design

Additional Information

Device Development Board
Type ESP32-S2 | MCU | WiFi
References

WIKI: ESP32-S2-Pico
