WVS ESP32-S3 4.3INCH DEV BOARD

Name: WVS ESP32-S3 4.3INCH DEV BOARD - Communica [Part No: WVS ESP32-S3 4.3INCH DEV BOARD]
Brand: Waveshare
SKU: WVS ESP32-S3 4.3INCH DEV BOARD
Price: 765.22 ZAR
Availability: OutOfStock
Rating: 5.00 (1 reviews)

SKU: WVS ESP32-S3 4.3INCH DEV BOARD

BRAND: Waveshare

Sold Out
R 880.00_{(inc VAT)}
R 765.22_{(ex VAT)}

Collections: IoT, Internet of things

Type: Development / Microcontroller Boards

Category: Capacitive Touch Display Development Board, Iot

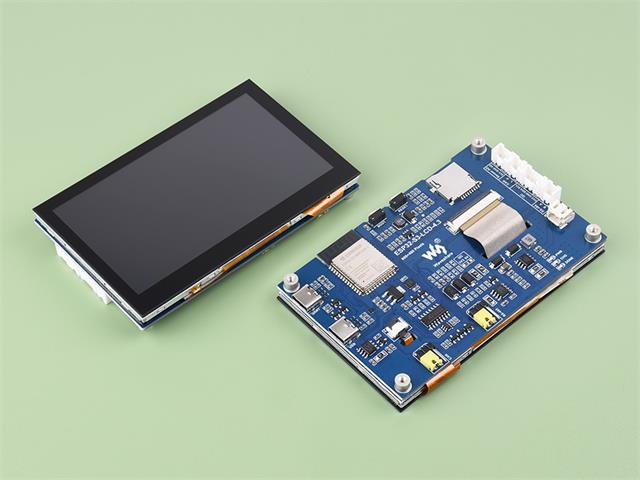

ESP32-S3 4.3Inch Capacitive Touch Display Development Board, 800×480, 5-Point Touch, 32-Bit Lx7 Dual-core Processor

4.3Inch Capacitive Touch Display Development Board

Overview

ESP32-S3-Touch-LCD-4.3 is a microcontroller development board with 2.4GHz WiFi and BLE 5 support, integrates high-capacity Flash and PSRAM. Onboard 4.3inch capacitive touch screen can smoothly run GUI programs such as LVGL. Combined with various peripheral interfaces, suitable for the quick development of the HMI and other ESP32-S3 applications

Features

Equipped with Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and 8MB Flash

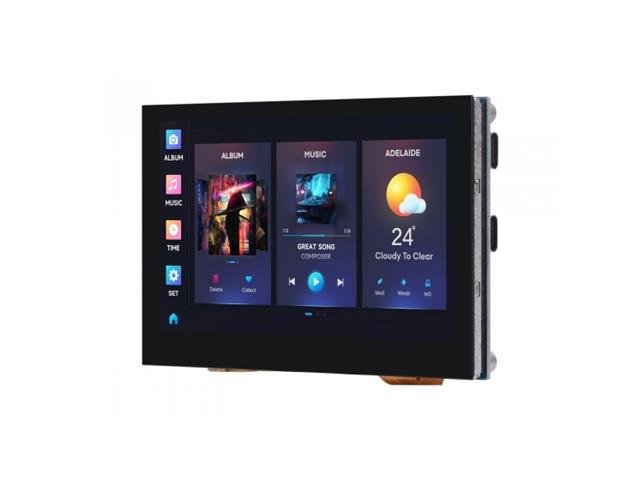

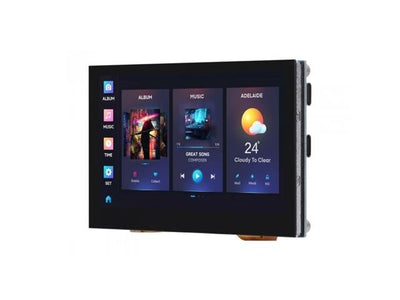

Onboard 4.3inch capacitive touch display, 800×480 resolution, 65K color
Supports capacitive touch control via I2C interface, 5-point touch with interrupt support
Onboard CAN, RS485, I2C interface and TF card slot, integrates full-speed USB port
Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios

Downloads

Additional Information

Device	Touch Display
Type	4.3Inch \| Capacitive \| Development Board
