ESP32-S3 1.64inch AMOLED Touch Display Development Board, 280×456, QSPI Interface, Onboard Accelerometer and Gyroscope Sensor, ESP32 with Display
AMOLED Touch Display Development Board
Overview

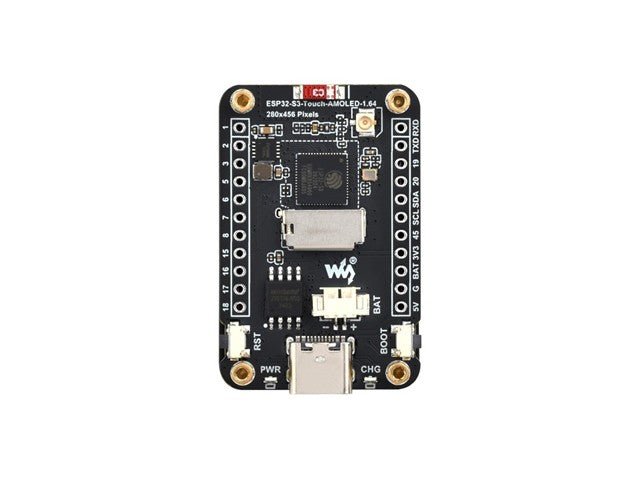

This product adopts ESP32-S3R8 chip with 2.4GHz Wi-Fi and Bluetooth BLE 5 support, and integrates high-capacity Flash and PSRAM. Onboard 1.64inch AMOLED display, capable of smoothly running GUI programs such as LVGL. Onboard rich peripheral resources such as QMI8658 6-axis IMU, TF card slot, and Lithium battery header, etc., while also providing USB, UART, I2C and multiple MUX_GPIO interfaces for strong expandability. It is ideal for the quick development of the HMI and other ESP32-S3 applications.
Features
- Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
- Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with an onboard antenna. The device allows switching to use an external antenna by resoldering an onboard resistor
- Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM

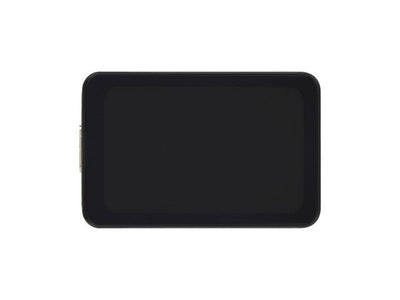

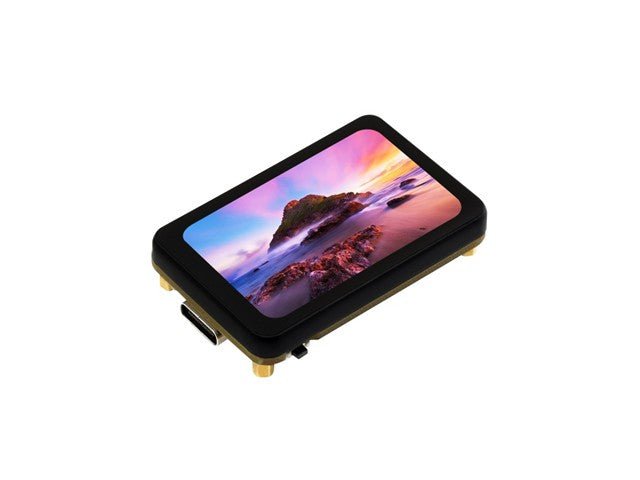

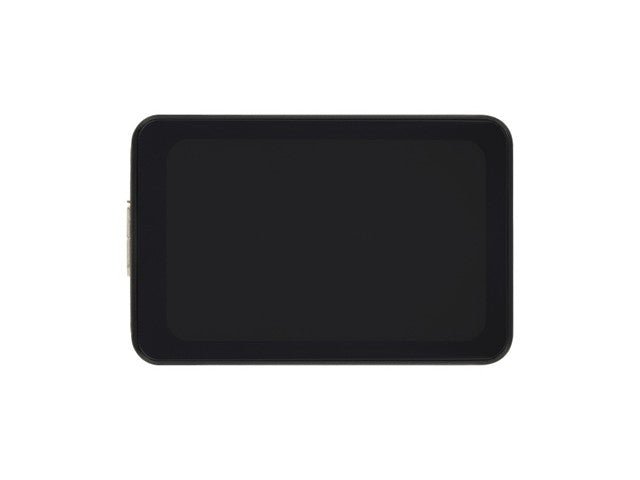

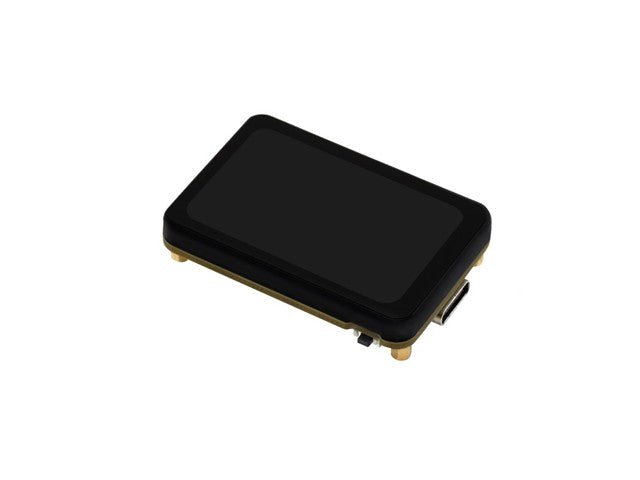

- Onboard 1.64inch AMOLED display, QSPI interface, 280 × 456 resolution, 16.7M color
- Supports capacitive touch function, controlled via I2C interface
- Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for motion gesture detection, step counting, and more
- Onboard RST button, along with programmable BOOT button for customizable functionality and flexible development
- Onboard 3.7V MX1.25 Lithium battery recharge/discharge header
- Onboard TF card slot, enabling external storage for pictures or files
- Onboard USB Type-C port for power supply, program downloading, and debugging, making development more convenient
- Adapting I2C, UART, and USB interfaces, for connecting peripherals and debugging
- Adopts CNC-machined metal frame for better protection, nice looking and more durable
Specifications
AMOLED parameters
| Display Panel |
AMOLED |
Display Size |
1.64 inch |
| Resolution |
280 × 456 |
Display Colors |
16.7M |
| Brightness |
350 cd/㎡ |
Contrast Ratio |
60000:1 |
| Communication Interface |
QSPI |
Driver IC |
CO5300 |
| Touch |
Supported |
Touch IC |
FT3168 |
Additional Information
| Device |
Development Board |
| Type |
AMOLED | Touch Display |
Unlock your creativity with the WVS ESP32-S3-TOUCH-AMOLED-1.64, a powerful development board featuring a stunning 1.64-inch AMOLED touch display. With built-in Wi-Fi and Bluetooth 5, plus advanced sensors, this board is perfect for rapid HMI development and IoT projects. Experience seamless connectivity and rich graphics for your applications today!
