WVS POE HAT RASPBERRY PI 5+FAN

Name: WVS POE HAT RASPBERRY PI 5+FAN - Communica [Part No: WVS POE HAT RASPBERRY PI 5+FAN]
Brand: Waveshare
SKU: WVS POE HAT RASPBERRY PI 5+FAN
Price: 413.04 ZAR
Availability: OutOfStock

SKU: WVS POE HAT RASPBERRY PI 5+FAN

BRAND: Waveshare

Sold Out
R 475.00_{(inc VAT)}
R 413.04_{(ex VAT)}

Collections: IoT, Internet of things

Type: Breakout boards / Shields / Modules

Category: Iot, Power over Ethernet HAT

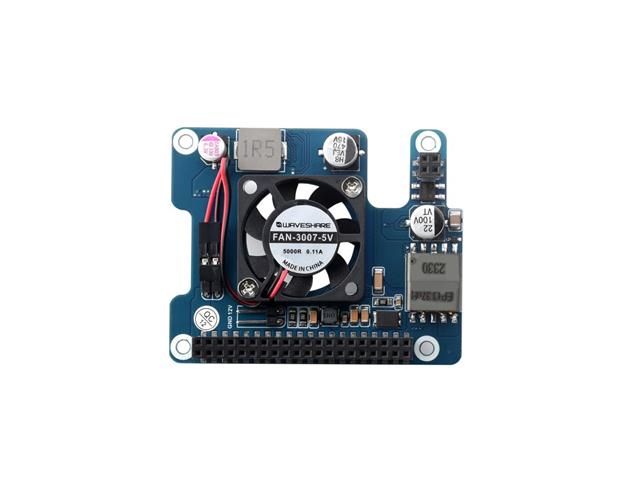

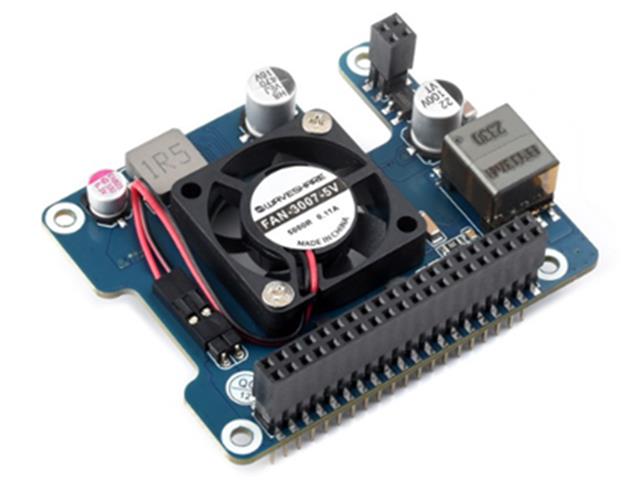

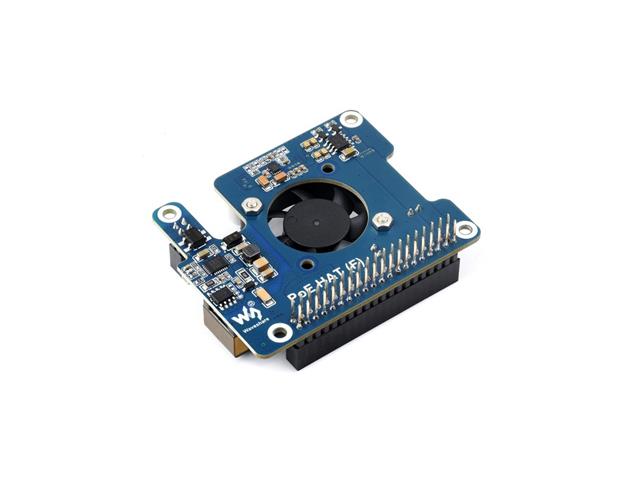

Power Over Ethernet Hat (F) For Raspberry Pi 5, High Power, Onboard Cooling Fan, With Metal Heatsink, Supports 802.3Af/at Network Standard

Power Over Ethernet Hat

Overview

The PoE HAT (F) is a 802.3af/at-compliant Power Over Ethernet accessory for the Raspberry Pi 5. By using this small HAT and some proper 802.3af/at-compliant power sourcing equipments, it is possible to provide both network connection and power supply for your Raspberry Pi in only one Ethernet cable.

Features

Standard Raspberry Pi 40PIN GPIO header, supports Raspberry Pi 5
PoE (Power Over Ethernet) capability，IEEE 802.3af/at-compliant
Fully isolated switched-mode power supply (SMPS)
Onboard high speed active cooling fan, with metal heatsink, better heat dissipation

Specifications

POE POWER INPUT	37V ~ 57V DC in
POWER OUTPUT	GPIO header: 5V 4.5A (MAX) 2P header: 12V 2A (MAX)
DIMENSIONS	56.5 × 70.0mm
NETWORK STANDARD	IEEE 802.3af/at PoE

Additional Information

Device	Hat
Type	Power Over Ethernet
