WVS SENSE HAT B FOR RASPBERRY PI

Name: WVS SENSE HAT B FOR RASPBERRY PI - Communica [Part No: WVS SENSE HAT B FOR RASPBERRY PI]
Brand: Waveshare
SKU: WVS SENSE HAT B FOR RASPBERRY PI
Price: 456.52 ZAR
Availability: InStock

SKU: WVS SENSE HAT B FOR RASPBERRY PI

BRAND: Waveshare

In Stock
R 525.00_{(inc VAT)}
R 456.52_{(ex VAT)}

Collections: IoT, Internet of things, specials

Type: Breakout boards / Shields / Modules

Category: Iot, Raspberry Pi Sense HAT, Specials

The Sense Hat (B) Is Specially Designed For Raspberry Pi, Integrates Multi Powerful Sensors Such As Gyroscope, Accelerometer, Magnetometer, Barometer, Temperature And Humidity Sensor, etc. It Is Communicates Via I2C Interface

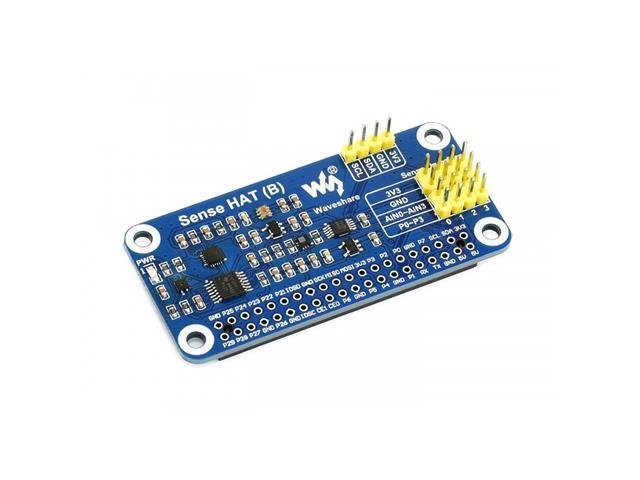

Sense HAT (B) for Raspberry Pi

Overview

The Sense HAT (B) is specially designed for Raspberry Pi, integrates multi powerful sensors such as gyroscope, accelerometer, magnetometer, barometer, temperature and humidity sensor, etc. It is communicated via I2C interface, and allows to connect more external sensors if you need.

Trying to make the Pi become a robot that can detect movement and orientation? Or using the Pi to collect environmental temperature, humidity, and barometric pressure data? This HAT would be your ideal choice.

Features

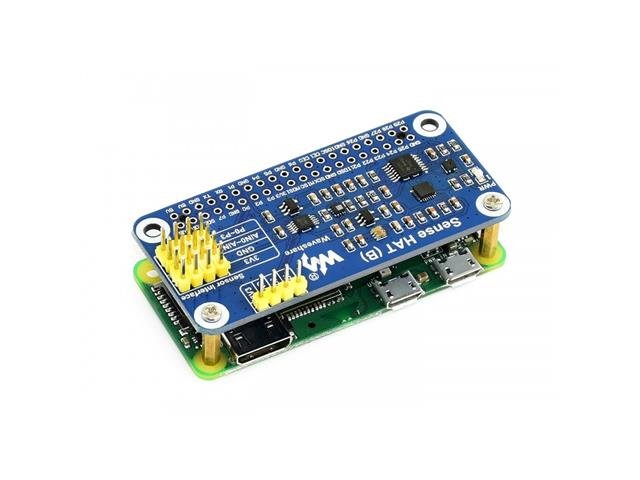

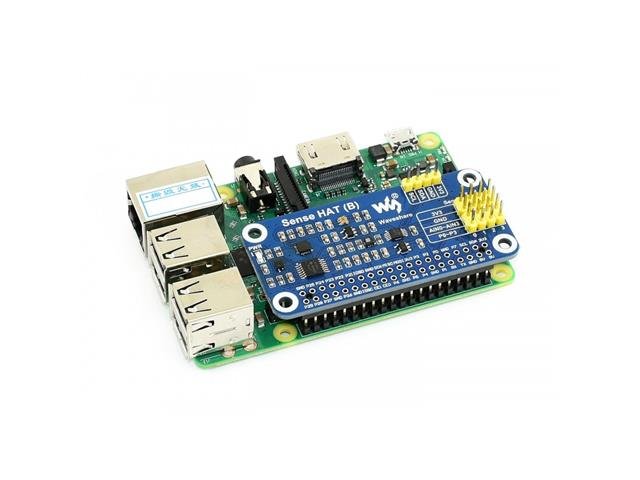

Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
Onboard ICM20948 (3-axis accelerometer, 3-axis gyroscope, and 3-axis magnetometer), detects movement, orientation, and magnetic
Onboard SHTC3 digital temperature and humidity sensor, allows monitoring the environment
Onboard LPS22HB barometric pressure sensor, allows monitoring the environment
Onboard TCS34725 color sensor, identifies the color of nearby object
Onboard SGM58031, 4-ch 16-bit precision, AD expansion to support more external sensors

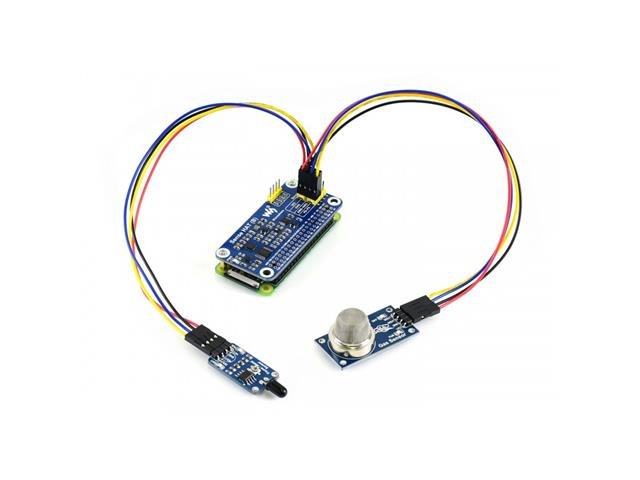

Brings I2C control pins, for connecting other host boards like STM32
Comes with development resources and manual (examples for Raspberry Pi/STM32)

Specifications

PRODUCT		SENSE HAT (B)
GYROSCOPE	RANGING	±250, ±500, ±1000, ±2000 dps
GYROSCOPE	RESOLUTION	16-bit
ACCELERATOR	RANGING	±2, ±4, ±8, ±16 g
ACCELERATOR	RESOLUTION	16-bit
MAGNETOMETER	RANGING	±49 gauss
MAGNETOMETER	RESOLUTION	16-bit
BAROMETER	RANGING	260 ~ 1260 hPa
	ACCURACY	±0.025 hPa (ordinary temperature)
	SPEED	1 Hz ~ 75 Hz
TEMP & HUMIDITY	RANGING (TEMP)	-30 ~ 100 °C
	ACCURACY (TEMP)	±0.2 °C
	RANGING (HUMIDITY)	0% ~ 100% RH
	ACCURACY (HUMIDITY)	±2% RH
OTHERS		Color Sensor, High-precision 16-bit AD converter

Additional Information

Device	Sense HAT (B)
Type	for Raspberry Pi
References	wiki/Sense_HAT_(B)
