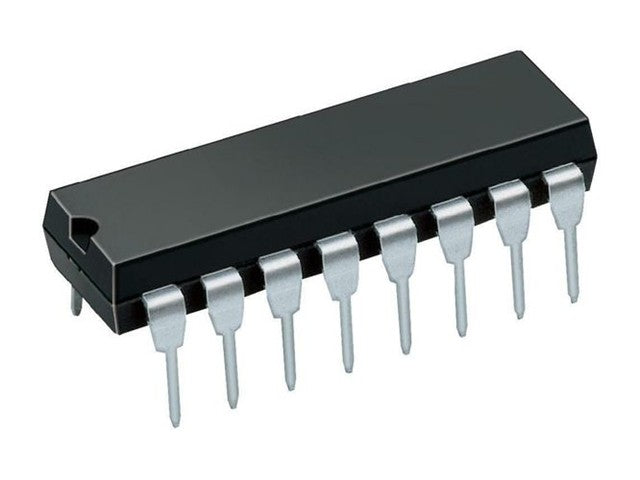

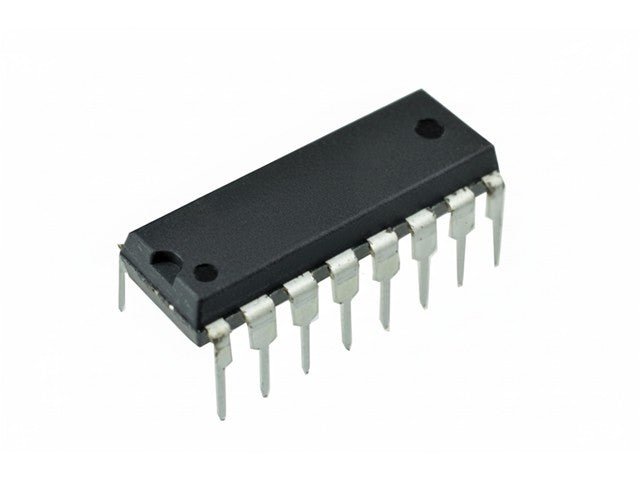

XR2206CP

Name: XR2206CP - Communica [Part No: XR2206CP]
Brand: Communica
SKU: XR2206CP
Price: 111.88 ZAR
Availability: InStock

SKU: XR2206CP

BRAND: Communica

R 128.66_{(inc VAT)}
R 111.88_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Semiconductors

Type: Clock & Timer ICs

Category: Monolithic Function Generator

Static RAM 128KX8 70NS 32PIN DIP 13/T

Specifications

Device Type: Monolithic Function Generator IC
Package: 16-Pin PDIP (DIP-16)
Technology: Analog Function Generator
Supply Voltage Range: 10 V to 26 V
Frequency Range: 0.01 Hz to over 1 MHz
Waveforms Generated:
- Sine
- Square
- Triangle
- Ramp (Sawtooth)
- Pulse
Sine Wave Distortion: 0.5% typical
Temperature Stability: 20 ppm/°C typical
Sweep Range: 2000:1 typical
Duty Cycle Adjustment: 1% to 99%
Frequency Modulation (FM): Supported
Amplitude Modulation (AM): Supported
FSK (Frequency Shift Keying): TTL-compatible control input
Output Types:
- Sine/Triangle Output
- Square Wave Sync Output
- Multiplier Output
Operating Temperature: 0°C to +70°C (commercial version)

Applications

Function generators
Signal generators
Audio tone generators
Sweep generators
AM/FM modulators
V/F converters
FSK generators
Voltage-Controlled Oscillators (VCOs)
Communications and instrumentation equipment

Additional Information

Device

IC

Discover the XR2206CP Function Generator, your ultimate tool for precision waveform generation. Perfect for engineers and hobbyists, this versatile IC enhances your projects with reliable performance and advanced functionality. Elevate your experiments with high-quality signal outputs and unmatched ease of use.
