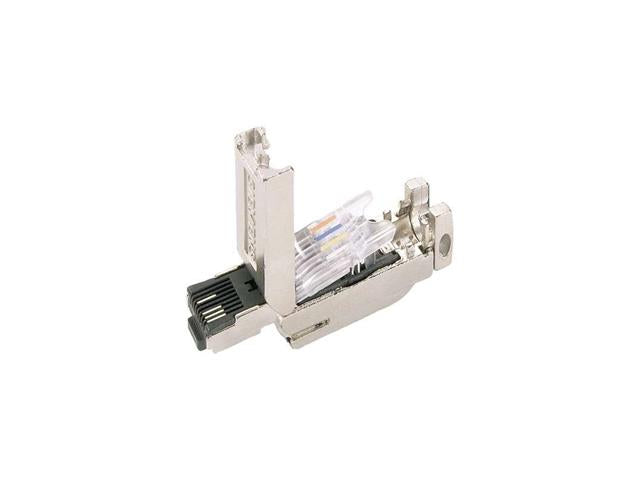

Profinet Connector, 2 x 2 RJ45, Tool Free IDC Termination - 180° Cable Entry - Rugged Metal Housing - Color Coded Wire Entry Tray - 100Mbps also for EtherCAT, ModBUS - IP20
Profinet Connector
Overview
Industrial Ethernet FastConnect RJ45 plug 180 2x 2, RJ45 plug-in connector (10/100 Mbit/s) with rugged metal enclosure and FC connection system, for IE FC TP cable 2x 2; 180° cable outlet
Feature(s)
Tool Free IDC Termination
180° Cable Entry
Rugged Metal Housing
Color Coded Wire Entry Tray
100Mbps also for EtherCAT, ModBUS
Specifications
suitability for use : For connection to IE FC TP cables 2x2, suitable for fast assembly with the FastConnect system
Transfer rate
Transfer rate / for Industrial Ethernet : 10 Mbit/s, 100 Mbit/s
Interfaces
Number of electrical connections
for Industrial Ethernet FC TP cables : 4
for network components or terminal equipment : 1
Type of electrical connection
for Industrial Ethernet FC TP cables integrated cut-and-clamp contacts for 4-wire TP FC installation cable AWG22
for network components or terminal equipment RJ45 connector
Type of electrical connection / FastConnect Yes
Mechanical data
Material / of the enclosure metal
Number of reuses 10
Locking mechanism design other
Design, Dimensions and Weights
Type of cable outlet 180° cable outlet
Width : 13.7 mm
Height : 16 mm
Depth : 55 mm
Net weight : 35 g
Connectable cable cross-section : 6.5 ... 6.5 mm
Connectable conductor cross-section : 0.33 mm²
Additional Information
Device
Connector
Type
RJ45
Degree of Protection
IP20
Elevate your industrial connectivity with the XY-700-901-1BB10-ECN Profinet Connector. Featuring a rugged metal housing and tool-free IDC termination, this reliable RJ45 plug ensures fast assembly and robust performance at 100Mbps, perfect for EtherCAT and ModBUS applications. Experience effortless installation with color-coded wire entry and a 180° cable outlet designed for maximum efficiency in your network setup.
