XY-700-901-1BB20-ECN

SKU: XY-700-901-1BB20-ECN

BRAND: Xytron


Profinet Connector, RJ45, Tool Free IDC Termination - 90° Cable Entry - Rugged Metal Housing - Color Coded Wire Entry Tray - 100Mbps also for EtherCAT, ModBUS - IP20

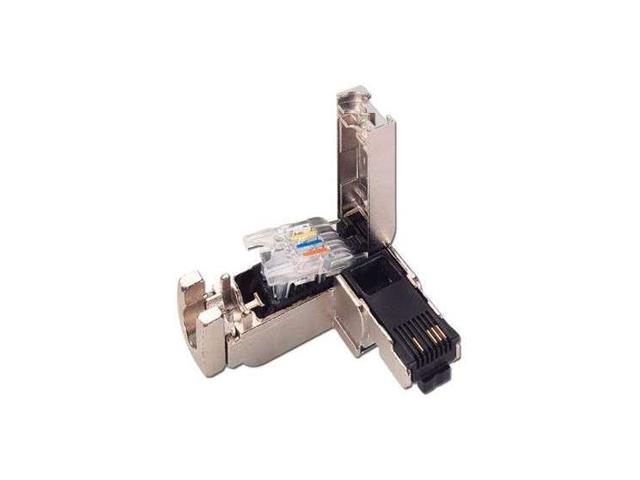

RJ45 Profinet Connector

Overview

Industrial Ethernet FastConnect RJ45 Plug 90 2x 2, RJ45 plug connector (10/100 Mbit/s) with robust metal housing and FC connection technology, for IE FC Cable 2x 2- 90° cable outlet IE FC RJ45 Plug 90 (2x2)

Specifications

  • No. of pins : 4
  • Specification : CAT 5
  • AWG max. : 24
  • AWG (min.) : 24
  • Standards : UL · cULus
  • Max. temperature : +85 °C
  • Min. temperature : -40 °C
  • Width : 13.7
  • Height : 16 mm
  • Product type : RJ45 plug

Additional Information

Device Connector
Type RJ45
