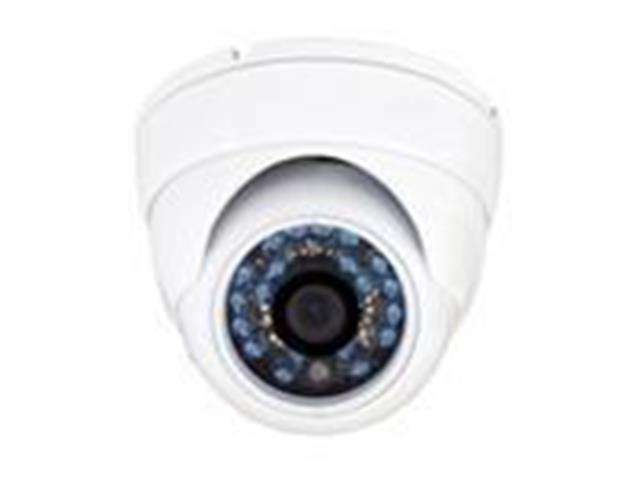

2.0MP Hybrid AHD High Definition Fixed IR Dome Vandalproof 3.6mm Lens ,24pcs IR LED. IR Distance 10m, Electronic Shutter, Auto White balance.
Overview
Features
System : PAL
Image Sensor : IMX323 + NVP2441
Picture Elements : PAL:1280(H)x720(V)
Horizontal Resolution : 1.0 Megapixel
Video Output : 1.0Vp-p Composite Output (75O / BNC)
S/N Ratio : ≥48dB
Min.Illumination : 0 Lux(IR On)
Electronic Shutter : 1/50(1/60)S~1/100,000S
White Balance : Auto
Gamma Ratio : >0.45
Lens : 3.6mm Megapixel lens
Operating Temperature : -10~+50°C
Humidity : 0 to 95%RH(non-condensing)
Power/Current : DC 12V
Sync System : 2:1 Interlace internal Sync
IR Project Distance : 10m
IR Status : On
Vandalproof Level : IP65
NOTE: Camera default setting is AHD
NOTE: To Change Setting On Camera
Up CVI, Left CVBS, Right AHD, Down TVI
Camera Is Set To AHD, At Factory
Method To Change To TVI
Hold Button Down For Approx 5 Sec, (No Need To Press Button Down) CAMERA WILL SWITCH TO TVI, Pull Out Power From Camera. Camera Will Remain Set To TVI .
Method To Change To Analogue (CVBS)
Hold Button In Left Position For Approx 5 Sec, Camera Will Switch To Analogue, Pull Out Power From Camera. Camera Will Remain Set To Analogue
Method To Change To CVI
Hold Button In Up Position For Approx 5 Sec, Camera Will Switch To CVI, Pull Out Power From Camera. Camera Will Remain Set To CVI
When Changing To Either Of The Settings There Is No Need To Press Button Down
Enhance your security with the XY-AHD151FDV 2.0MP 4 IN 1 dome camera. Featuring a high-definition image sensor and 24 IR LEDs for clear night vision up to 10m, this vandalproof camera ensures reliable monitoring in any environment. Its versatile settings let you easily switch between AHD, CVI, TVI, and CVBS formats, making it perfect for any surveillance system.
