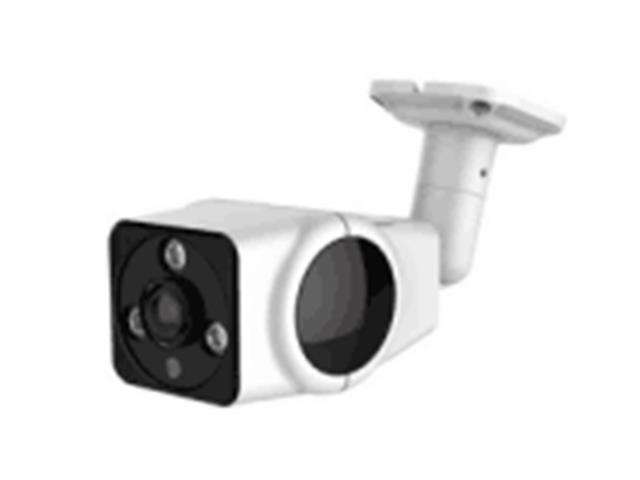

- Sensor : 1080P CMOS Image Sensor
- System : PAL
- Picture Elements : PAL:1920(H)x1080(V)
- Horizontal Recolution : 2.0 Megapixel
- Video OutPut : Hybrid Video Output
- S/N Ratio : ≥48dB
- Min.Illumination : 0LUX(IR ON)
- Electronic Shutter : 1/50(1/60)S~1/100,000S
- White Balance : Auto
- Gamma Ratio : >0.45
- Lens Mount : 1.7mm fisheye lens
- Operating Temp. : -10°C ~ +50°C
- Humidity : 0 to 95%RH(non-condensing)
- Power/Current : DC 12V
- Sync System : 2:1 Interlace internal Sync.
- IR Project Distance : 5M / 3 units Array LED
- IR Status : On
- Outdoor/Indoor : Indoor
NOTE: Camera default setting is AHD. NOTE: To Change Setting On Camera. * Up CVI, LEFT CVBS, RIGHT AHD, DOWN TVI. * Camera Is Set To AHD, At Factory.
Method To Change To TVI
- Hold Button Down For Approx 5 Sec, (No Need To Press Button Down) Camera Will Switch To TVI, Pull Out Power From Camera. Camera Will Remain Set To TVI.
Method To Change To Analogue (CVBS)
- Hold Button In Left Position For Approx 5 Sec, Camera Will Switch To Analogue, Pull Out Power From Camera. Camera Will Remain Set To Analogue.
Method To Change To CVI
- Hold Button In Up Position For Approx 5 Sec, Camera Will Switch To CVI, Pull Out Power From Camera. Camera Will Remain Set To CVI.
- When Changing To Either Of The Settings There Is No Need To Press Button Down.
