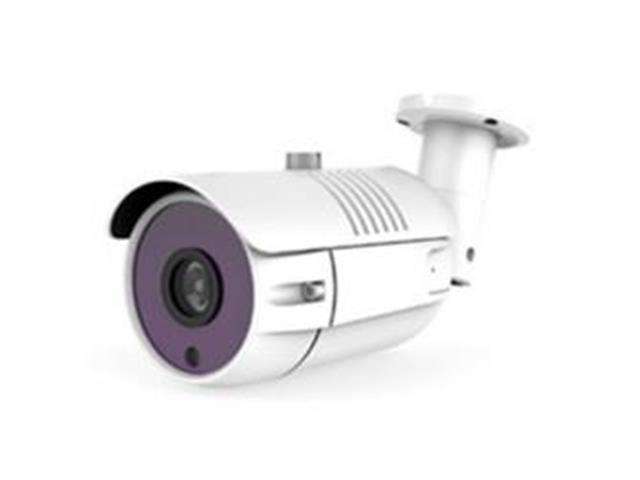

XY-AHD36BF HK5.0MP 4IN1

• Sensor : 5MP CMOS Image Sensor
• System : PAL
• Picture Elements : PAL:2560(H)*1944(V)
• Horizontal Recolution : 5.0 Megapixel
• Video OutPut : Hybrid Video Output
• S/N Ratio : =48dB
• Min.Illumination : 0LUX(IR ON)
• Electronic Shutter : 1/50(1/60)S~1/100,000S
• White Balance : Auto
• Gamma Ratio : >0.45
• Lens Mount : 3.6mm 5MP lens
• Operating Temp : -10? ~ +50?
• Humidity : 0 to 95%RH(non-condensing)
• Power/Current : DC 12V
• Sync System : 2:1 Interlace internal Sync.
• IR Project Distance : 10~15M / 36 units IR LED
• IR Status : On
• Outdoor/Indoor : Outdoor

NOTE: Camera Default Setting is AHD

NOTE : To Change Setting On Camera

• Up CVI, Left CVBS, Right AHD, Down TVI
• Camera Is Set To AHD, At Factory

Method To Change To TVI

• Hold Button Down For Approx 5 Sec, (No Need To Press Button Down) Camera Will Switch To TVI, Pull Out Power From Camera. Camera Will Remain Set To TVI.

Method To Change To Analogue (CVBS)

• Hold Button In Left Position For Approx 5 Sec, Camera Will Switch To Analogue, Pull Out Power From Camera. Camera Will Remain Set To Analogue.

Method To Change To CVI

• Hold Button In Up Position For Approx 5 Sec, Camera Will Switch To CVI, Pull Out Power From Camera. Camera Will Remain Set To CVI.
• When Changing To Either Of The Settings There Is No Need To Press Button Down.
