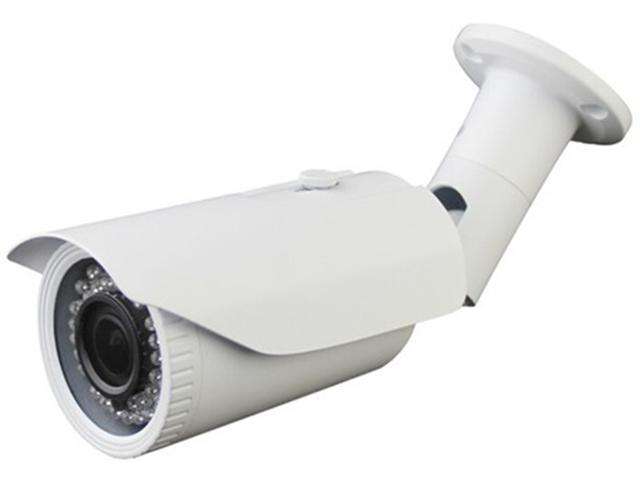

XY-AHD42BSVF 1.0MP

• System : PAL
• Image Sensor : Nextchip 2431H + OV9712
• Picture Elements : PAL:1280(H)*720(V)
• Horizontal Resolution : 1.0 Megapixel
• Video Output : 1.0Vp-p Composite Output (75Ω/BNC)
• S/N Ratio : ≥48dB
• Min.Illumination : 0LUX (IR ON)
• Electronic Shutter : 1/50(1/60)S~1/100,000S
• White Balance : Auto
• Gamma Ratio : >0.45
• Lens Mount : 2.8~12mm MP Lens
• Operating Temperature : -10°C~ 50°C
• Humidity : 0 to 95%RH (non-condensing)
• Power/Current : DC 12V
• Sync System : 2:1 Interlace internal Sync.
• IR Project Distance : 30M w/42 units F5 LED
• IR Status : On
• Weatherproof Level : IP65
