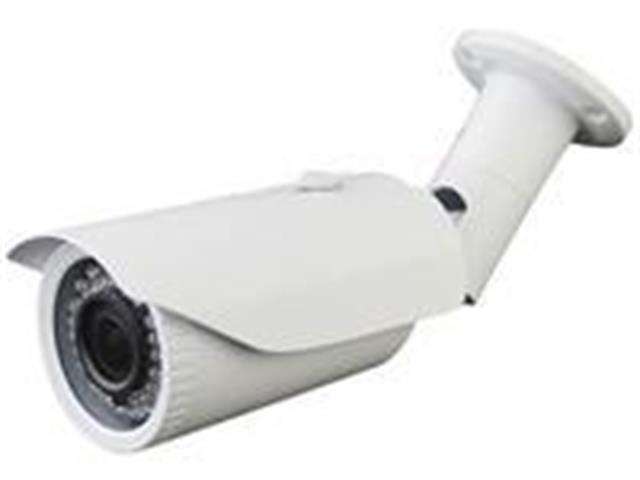

2.0 MP 1080P AHD 4 IN 1 Bullet Camera, Varifocal 2,8~12mm Lens. IR Project Distance, 30m with 42 Units F5 LED, IP65 Rating
Overview
Features
- Sensor : 1080P CMOS Image Sensor
- System : PAL
- Picture Elements : PAL:1920(H)x1080(V)
- Horizontal Recolution : 2.0 Megapixel
- Video OutPut : Hybrid Video Output
- S/N Ratio : ≥48dB
- Min.Illumination : 0LUX(IR ON)
- Electronic Shutter : 1/50(1/60)S~1/100,000S
- White Balance : Auto
- Gamma Ratio : >0.45
- Lens Mount : 2.8~12mm 2MP lens
- Operating Temp. : -10° ~ +50deg;C
- Humidity : 0 to 95%RH(non-condensing)
- Power/Current : DC 12V
- Sync System : 2:1 Interlace internal Sync.
- IR Project Distance : 30~35M / 42 units IR LED
- IR Status : On
- Outdoor/Indoor : Outdoor
NOTE : To Change Setting On Camera
- Up CVBS , Left AHD , Right TVI, Down CVI.
- Camera Is Set To AHD, At Factory .
Method To Change To TVI
- Hold Button To The Right For Approx 5 Sec, (No Need To Press Button Down) Camera Will Switch To TVI, Pull Out Power From Camera. Camera Will Remain Set TO TVI .
Method To Change To Analogue (CVBS)
- Hold Button To Up Position For Approx 5 SEC, Camera Will Switch To Analogue, Pull Out Power From Camera. Camera Will Remain Set To Analogue.
Method To Change To CVI
- Hold Button Down For Approx 5 Sec, Camera Will Switch To CVI, Pull Out Power From Camera. Camera Will Remain Set To CVI.
- When Changing To Either Of The Settings TherE Is No Need To Press Button Down.
