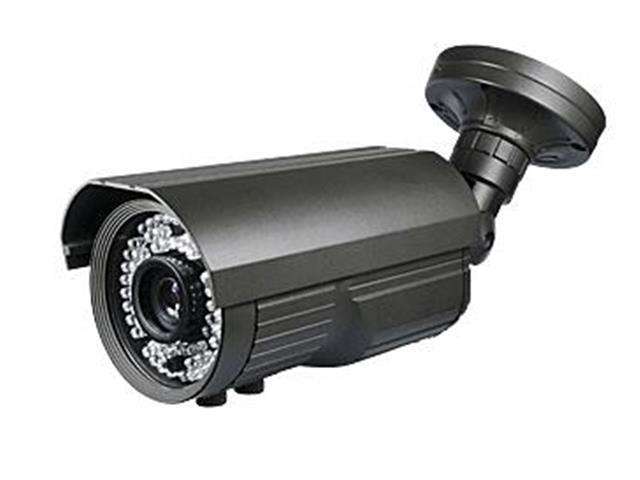

NOTE : Camera default setting is AHD

NOTE : To Change Setting On Camera

• Up CVI, Left CVBS, Right AHD, Down TVI
• Camera Is Set To AHD, At Factory

Method To Change To TVI

• Hold Button Down For Approx 5 Sec, (No Need To Press Button Down) Camera Will Switch To TVI, Pull Out Power From Camera. Camera Will Remain Set To TVI

Method To Change To Analogue (CVBS)

• Hold Button In Left Position For Approx 5 Sec, Camera Will Switch To Analogue , Pull Out Power From Camera . Camera Will Remain Set To Analogue

Method To Change To CVI

• Hold Button In Up Position For Approx 5 Sec, Camera Will Switch To CVI, Pull Out Power From Camera. Camera Will Remain Set To CVI
• When Changing To Either Of The Settings There Is No Need To Press Button Down.

• 4 IN 1 WITH OSD CABLE
• System : PAL
• Image Sensor : IMX238 + 2431
• Picture Elements : PAL:1280(H)x960(V)
• Horizontal Resolution : 1.3 Megapixel
• Video Output : 1.0Vp-p Composite Output (75O / BNC)
• S/N Ratio : ≥48dB
• Min.Illumination : 0 Lux(IR On)
• Electronic Shutter : 1/50(1/60)S~1/100,000S
• White Balance : Auto
• Gamma Ratio : >0.45
• Lens : 5~50mm Megapixel lens
• Operating Temperature : -10~+50°
• Humidity : 0 to 95%RH(non-condensing)
• Power/Current : DC 12V
• Sync System : 2:1 Interlace internal Sync
• IR Project Distance : 80m
• IR Status : On
• Weatherproof Level : IP65

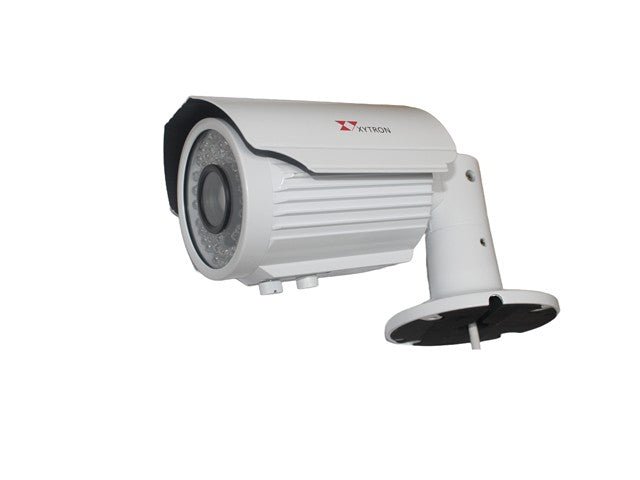

1. Datasheet - XY-AHD550BV 1.3MP 4 IN 1
