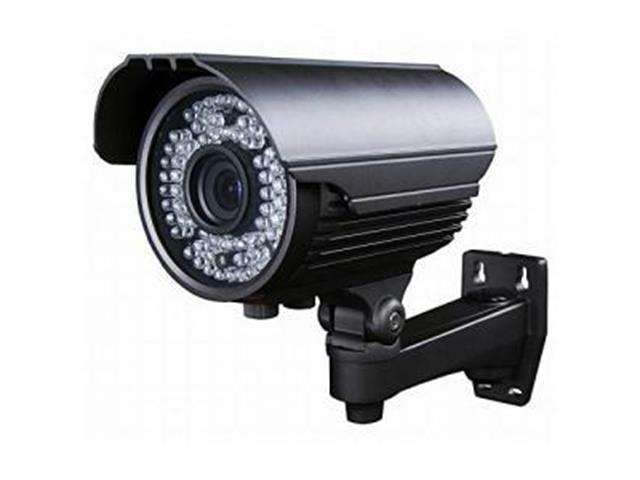

XY-AHD6220BV 1080P 4IN1

SKU: XY-AHD6220BV 1080P 4IN1

BRAND: Xytron


2.0MP AHD High Definition Outdoor Bullet Camera 6~22m Varifocal LENS, 50m IR Range, IP65. Power DC 12V.72pcs IR LED , 40~50m IR Distance, Electronic Shutter. Auto White Balance

Overview

Features

  • HD Resolution 1920x1080P
  • Starlight illumination : 0.0001Lux
  • Color image under star light at night without IR
  • Video output AHD/TVI/CVI 1080P / CVBS 1200TVL
  • OSD menu control up the coaxial cable (UTC)
  • IP66

NOTE : Setting On Camera Switch

  • Up AHD, Left TVI, Right Analogue, Down CVI
  • Camera Is Set To AHD, At Factory

Method To Change To TVI

  • Hold Button To Left For Approx 5 Sec, (No Need To Press Button Down) Camera Will Switch To TVI, Pull Out Power From Camera. Camera Will Remain Set To TVI

Method To Change To Analogue (CVBS)

  • Hold Button To Right For Approx 5 Sec, (No Need To Press Button Down) Camera Will Switch To Analogue, Pull Out Power From Camera. Camera Will Remain Set To Analogue

Method To Change To CVI

  • Hold Button Down For Approx 5 Sec, Camera Will Switch To CVI, Pull Out Power From Camera. Camera Will Remain Set To CVI

Specification
