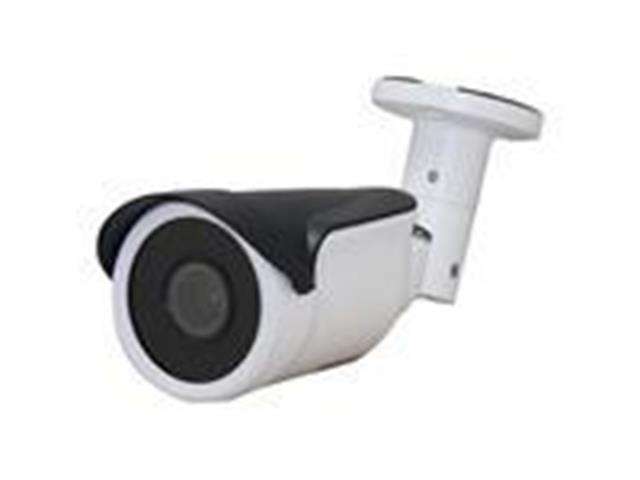

2.0 MP 4 IN1 Starlight Bullet Camera, VF2, 8~12mm, SONY IMX CMOS Sensor (1080P), HD Resolution 1920x1080P, CVI/AHD/TVI/CVBS 1200 TVL,1/50(1/60)S~1/100,000S, Auto White Balance, Power DC 12V, Outdoor, 0.0001Lux@F1.2 Color Night Picture
Overview
Features
- HD Resolution 1920x1080P
- Starlight illumination : 0.0001Lux
- Color image under star light at night without IR
- Video output AHD/TVI/CVI 1080P / CVBS 1200TVL
- OSD menu control up the coaxial cable (UTC)
- IP66
NOTE : Setting On Camera Switch
- Up AHD, Left TVI, Right Analogue, Down CVI
- Camera Is Set To AHD, At Factory
Method To Change To TVI
- Hold Button To Left For Approx 5 Sec, (No Need To Press Button Down) Camera Will Switch To TVI, Pull Out Power From Camera. Camera Will Remain Set To TVI
Method To Change To Analogue (CVBS)
- Hold Button To Right For Approx 5 Sec, (No Need To Press Button Down) Camera Will Switch To Analogue, Pull Out Power From Camera. Camera Will Remain Set To Analogue
Method To Change To CVI
- Hold Button Down For Approx 5 Sec, Camera Will Switch To CVI, Pull Out Power From Camera. Camera Will Remain Set To CVI
Specification
- System : PAL
- Picture Elements : PAL:1920(H)x1080(V)
- Horizontal Recolution : 2.0 Megapixel
- Video OutPut : Hybrid Video Output
- S/N Ratio : ≥48dB
- Min.Illumination : 0.0001LUX @ Color Mode
- Electronic Shutter : 1/50(1/60)S~1/100,000S
- White Balance : Auto
- Gamma Ratio : >0.45
- Lens Mount : 2.8~12mm 2MP lens
- Operating Temp : -10°C ~ +50°C
- Humidity : 0 to 95%RH(non-condensing)
- Power/Current : DC 12V
- Sync System : 2:1 Interlace internal Sync
- IR Project Distance : no LED
- IR Status : /
- Outdoor/Indoor : Outdoor
