Camera

• Image sensor : 3.0MP 1/2.5" SC335E Low illumination CMOS sensor
• Min.illumination : Color 0.01Lux @(F1.2,AGC ON),0 LUX with IR, black/white 0.001 Lux @ (F1.2,AGC ON),0 LUX with IR
• Shutter : 1/50(1/60)s - 1/10,000 s
• Day/night : Support IR-CUT
• Noise Reduction : Support 2D/3D
• WDR : Digital
• LED : 42 units IR LED
• Distance : 35M IR distance
• Lens : 2.8mm 5 Megapixel lens

Video & Audio compression

• Video : H.265AI/H.265+ (Compatible with H.265/H.264),support dual stream, AVI;
• Bite rate : 0.1M~10Mpbs variable;1~30f/s variable
• Audio : G.711,audio&video synchronization
• Audio interface : 1ch input,level:2Vp-p,impedance:1kΩ,support sound pick-up input;0ch, output(expandable to 1ch)


• Max.image resolution : 3MP 2304*1296@25fps
• Image Output : Main stream: Main stream: 2304*1296@20fps,1920*1080@25fps; sub-stream: 800*448@25fps,704*576@25fps, 640*360@25fps
• Image setting : Saturation, brightness and contrast are adjustable through IE browser or client

Network

• Intelligence : Supporting human detection and tripping line detection, and supports intelligent, functions such as customized face detection, number statistics, etc.
• Net interface : 1*RJ45 10/100M adaptive Ethernet port;support RTSP/FTP/DHCP/NTP/UPnP etc
• Reliability : Comprehensive lightning protection, 7 * 24 hours-10°C~65°C high temperature stable and reliable testing
• Onvif : Yes

Others

• Support WEB,OSD,live video transmission,motion detect and IO alarm,front-end
• Storage/playback/download, and center reminder and image linkage,support JPEG
• Capture;united remote client monitoring sofaware、MYEYE;perfect SDK
• Mobile Monitoring : Support multiple mobile monitoring(iOS,Android)

General

• Operating condition : humidity less than 90%( non-condensing)
• Power supply : DC12V ±10% / PoE
• Weight : 800g

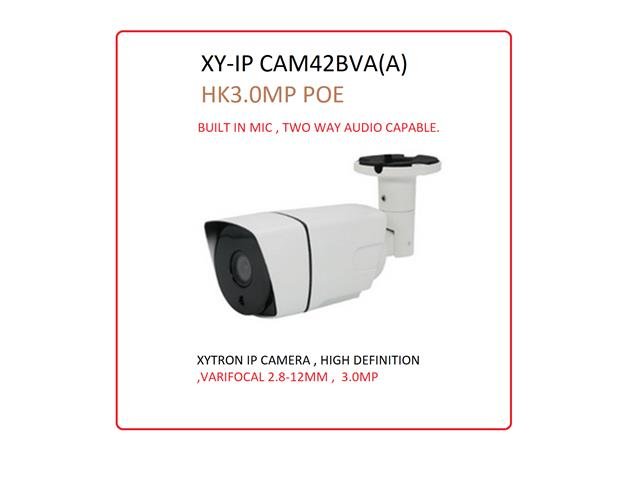

1. Datasheet - XY-IP CAM42BVA(A) HK3.0MP POE
