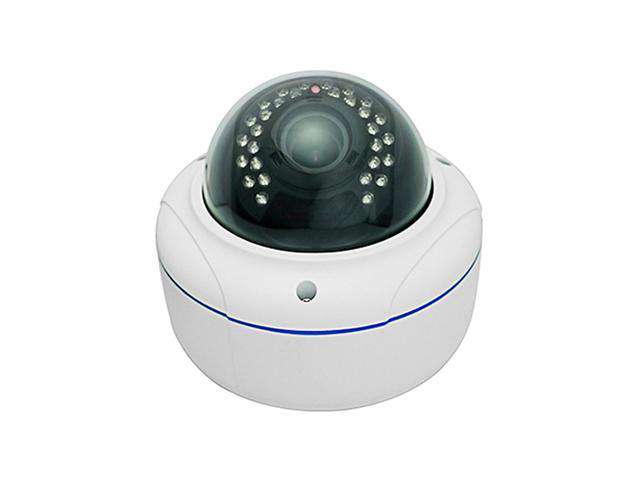

H.265 / H2.64 Dual Stream 4MP 3,6mm Fixed Lens Dome IP Camera with 30pcs IR LEDs, 10~15m IR Distance, IR Cut Filter, Bi Directional Audio and HQ 5MP Lens
Overview
Features
Specification
Camera
- Image sensor : 1/3inch OV4689 Low Illumination CMOS + Hi3516D Processor
- Min.illumination : Color 0.01Lux @(F1.2,AGC ON),0 LUX with IR black/white 0.001 Lux @ (F1.2,AGC ON),0 LUX with IR
- Shutter : 1/50(1/60)s - 1/10,000 s
- day/night : Support IR-CUT
- LED : 30 units F5 LED
- Distance : 10~15M IR distance
- Lens : 3.6mm 5 Megapixel lens
Compression
- Video : H.265/H.264 dual stream
- Bite rate : 100 Kbps~10Mbps
- Audio : G.711, support bidrectional talk, audio & video synchronization
- Max.image resolution : Main stream : 4MP 2592x1520 at 15fps, 3MP 2048x1536 at 25fps Sub stream: 704x576 at 25fps
- Frame Rate : 50Hz:25fps(2048x1536) ; 60Hz:30fps(2048x1536)
- Image setting : Saturation, brightness and contrast are adjustable through IE browser or client
Network
- Storage : network storage
- Intelligent alarm : Motion detection, video loss, cable break, IP address conflicts
- Protocol : TCP/IP,HTTP,DHCP,DNS,DDNS, PPPOE,SMTP,NTP(HTTPS, RTP/RTSP, SIP ,802.1x,IPv6 )
- Basic : anti-flicker, dual-stream, heartbeat, password protection
- Net interface : One RJ45 10M/100M
General
- Operating condition : humidity less than 90%( non-condensing)
- Power Supply : DC12V ±10%
- Weight : 1000g
