XY-LPIR3998

SKU: XY-LPIR3998

BRAND: Xytron

Sold Out
R 645.00_{(inc VAT)}
R 560.87_{(ex VAT)}

Collections: Security, Access Control & Surveillance

Type: Alarms & Accessories

Category: Detectors, Microwave Detectors

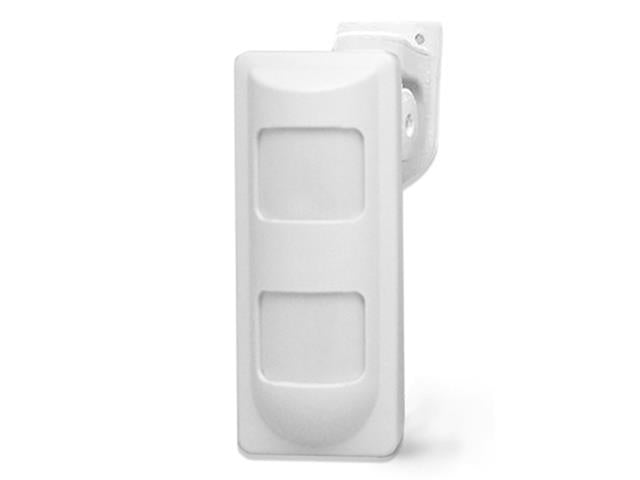

Outdoor Dual PIR with Microwave and Anti-masking with Detection Distances Selectable and 25Kg Pet Immunity

Overview

Features

Outdoor Detector
Dual PIR with Microwave and Anti-masking
25Kg Pet Immunity
Adjustable Settings with 3 Different Detection Modes
with Two Sensitivities
Power Input : 9-16VDC
Install Height : 1.5~2,4m

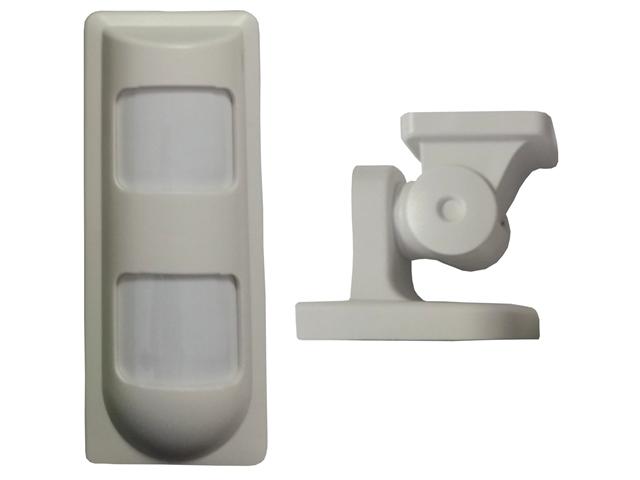

Includes Mounting Bracket

Specification

Power Supply : 9-16VDC
Current : 30mA
Install high : 1.5m.-2.4m
MW frequency : 10.525GHz
Alarm time : 3s
Anti RFI/EMI : 0.1-500MHz/3V/m
Anti-white Light : >10000 LUX
Alarm Output : 100mA/24V
Mask Output : 100mA/24V
Temperature : -10°C/+55°C
Humidity(RH) : 95%
Sensitivity : H /L Select
Detect speed : 0.2m/s to 3.5m/s
Dimensions (HxWxD) : 160x65x50.5mm
Coverage : 12m x 12m 100 (wide lens), 12m x 3m 12 (curtain lens), 12m x 12m 100 (pet lens)
