XY-R01G-10-DIN

Name: XY-R01G-10-DIN - Communica [Part No: XY-R01G-10-DIN]
Brand: Xytron
SKU: XY-R01G-10-DIN
Price: 891.95 ZAR
Availability: InStock

SKU: XY-R01G-10-DIN

BRAND: Xytron

In Stock
R 1,025.74_{(inc VAT)}
R 891.95_{(ex VAT)}

Collections: Power

Type: Surge Protection

Category: PoE Surge Protector

Indoor DIN Rail 10 Gigabit PoE 4 Level Surge Protector. Input 44 -57VDC (Max 60V) @ 1A for 2 pairs/ 2A for 4 Pairs (Max. 110W)10/100/1000Mbps. 10KV Lightning Protection/20KA Peak surge -40℃ to 85℃. IP40

10 Gigabit PoE 4 Level Surge Protector

Overview

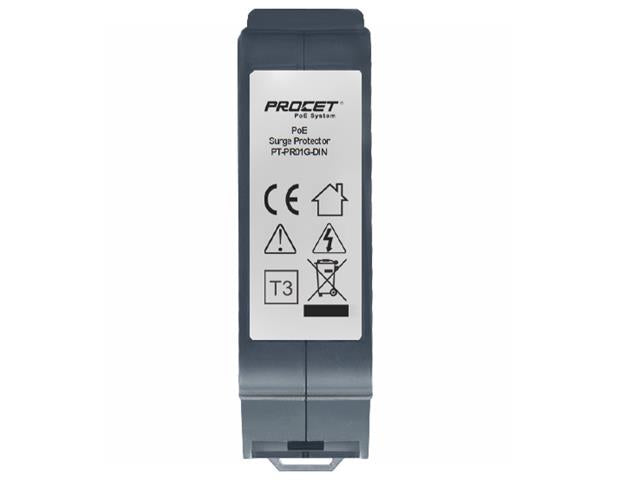

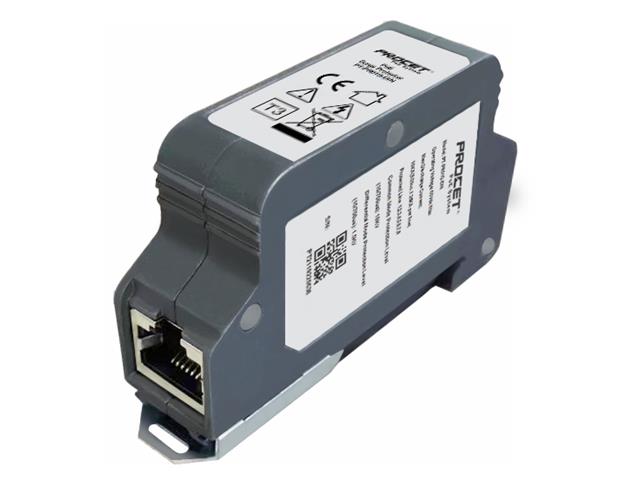

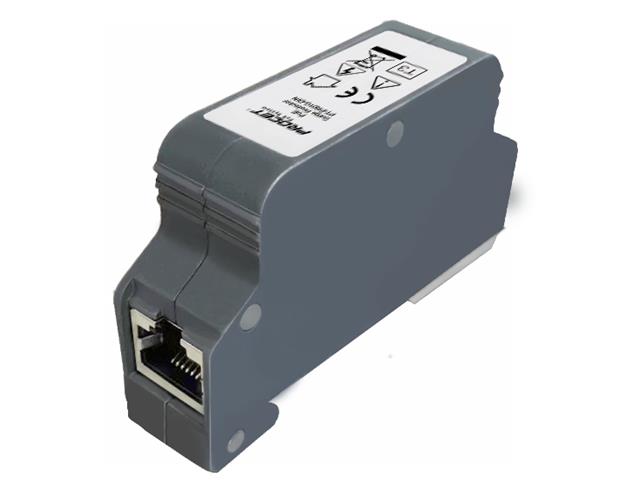

PT-PR01G-10-DIN is a single-port PoE surge protector, which has 2 RJ45 ports. Either port can be PoE in or PoE out. It supports 8 lines network signals and provides surge protection for PoE wires. The PoE surge protector can bear 10KA Peak Surge Current. 20KV(10/700us) common mode surge voltage and 1.5KV(10/700us) differential mode surge voltage. It supports not only 10/100/1000Mbps of data rates, but also 2.5/5/10GbE NBase-T. It is ideal to well protect your device against surge damage.

It is designed for indoor use with a Zinc-alloy shell, which works with 60Vdc Max voltage and operates from -40℃ to 85℃. It is connected to network over Cat5e/Cat6 cables with RJ45 connector conveniently and tightly.

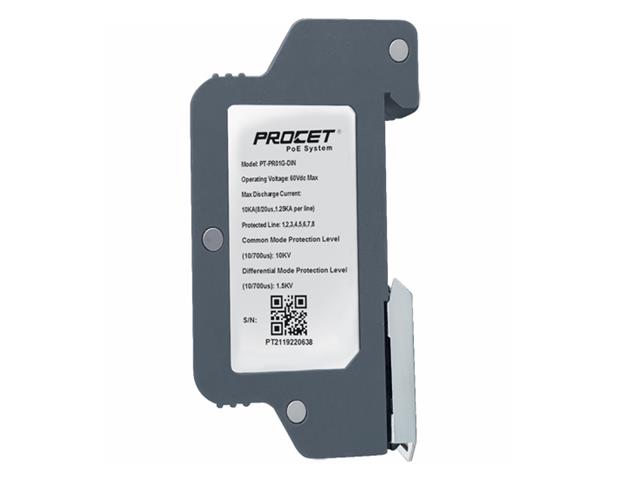

This model has equipped a standard DIN rail mounting bracket, which can easily jam into the guide rail. The Ethernet lightning arrestor must be properly grounded to work. Because it only used on a DIN Rail and the DIN rail as a ground wire to transmit current to the earth.

Specifications

Parameter	Description
Key Features	10G Din Rail PoE Surge Protector 120W 20KV 10KA Zinc alloy case
Part Number	PT-PR01G-10-DIN
Ports condition	RJ45 PoE Port*2
PoE output	120W
Data rates	10G
Operating Voltage	60Vdc(Max)
Operating Power	PoE 120W(Max)
Regulatory Compliance	802.3af/at/bt/PoE++ RoHS Compliance WEEE Compliance
Working Environment	Operating Temperature: -40℃ to 85℃ Operating Humidity: 20% to 80%, non-condensation Storage Temperature: -40℃ to 85℃ Storage Humidity: 10% to 90%, non-condensation Operating Altitude: up to 5000meters
PoE Surge Protection	Max Discharge Current: 10KA(8/20us,1.25KA per line) Protected Line: 1,2,3,4,5,6,7,8 Common Mode Protection Level(10/700us): 20KV Differential Mode Protection Level(10/700us): 1.5KV Insertion Loss @10MHz/100MHz：-1db Return Loss @10MHz/100MHz: -20db Response Time：5ns
Mechanical Characteristics	Size: 77.2X 45X 19mm Weight: 115g（0.25lb）
Safety Approvals	CE

Downloads

Datasheet - XY-R01G-10-DIN

Additional Information

Device	Protector
Type	10 Gigabit \| PoE \| 4 Level Surge
